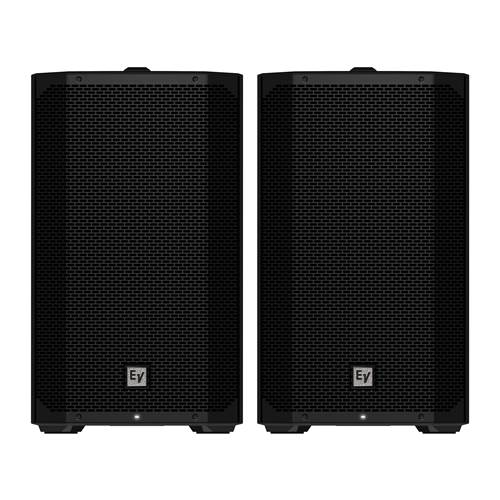

Electro Voice ZLX-12P-G2 Active Speaker (Pair)

ZLX-12P-G2 Active Speaker (Single)

The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.

ZLX-G2 loudspeakers lead with acoustic output and extended frequency range. The Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures enhanced bass response, smaller size and more even coverage across all frequencies. ZLX-G2 is designed with a robust and ergonomic enclosure for day-to-day durability and portability. POWERED BY DYNACORD, all powered ZLX-G2 loudspeakers feature a built-in digital mixer with FX, EQ, automatic feedback suppression (AFS) and ducking. The mixer includes two XLR/TRS combo jacks, and provides 24V phantom power and Hi-Z compatibility.

Bluetooth® stereo streaming and linking for true wireless stereo setup are integrated into the ZLX-G2 series. The mixer and all speaker functions are easily controlled from the Electro-Voice QuickSmart Mobile app. The app allows pairing and grouping of up to six loudspeakers, in any combination.

The new larger full-color LCD display and simple single encoder and push-key interface result in quick setup and more user control. Powered ZLX-G2 loudspeakers contain Electro-Voice-specific subwoofer presets that adjust for both gain and time alignment, resulting in full acoustic optimization. Additional highpass filters (HPF) are available in the DSP for increased compatibility.

Frequency response (-3 dB) (Hz)	54 Hz – 18,500 Hz
Frequency range (-10 dB) (Hz)	48 Hz – 20,000 Hz
Maximum sound pressure level at a distance of 1 m (dB)	127 dB
Coverage angle HxV (°)	90° x 60°
Crossover frequency (kHz)	1.40 kHz
Power rating (W)	1000 W
Power consumption (V, Hz)	100 - 240 V~, 50 - 60 Hz
LF transducer	WECA2128
LF transducer size (in)	12 in
LF transducer magnet material	Ferrite
HF transducer	DECA2516
HF transducer type	Compression driver
HF transducer size (in)	1.40 in
HF transducer magnet material	Ferrite
HF transducer diaphragm material	Titanium
Connector type	(2) XLR/TRS combo, (1) 1/4-inch TS Hi-Z
Material	Polypropylene
Grille material	Powder coated steel
Dimensions (H x W x D) (mm)	621.1 mm x 356.2 mm x 356 mm
Dimensions (H x W x D) (in)	24.45 in x 14.02 in x 14.01 in
Weight (kg)	14.82 kg
Weight (lb)	32.67 lb

Manufacturer's ID: F.01U.385.528
