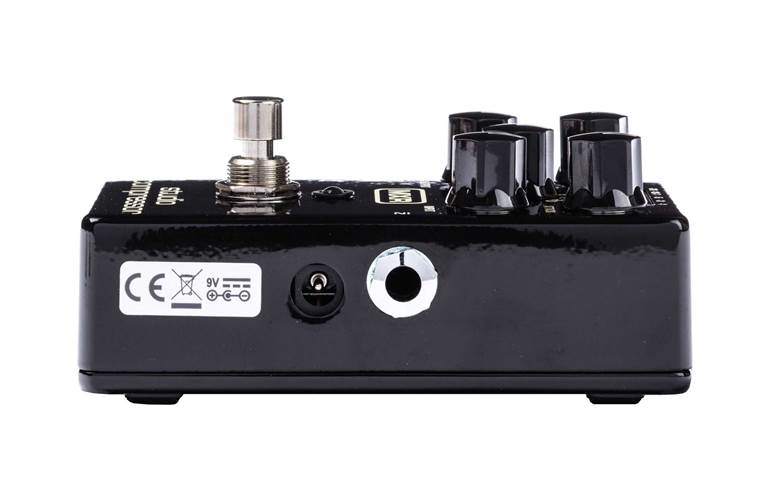

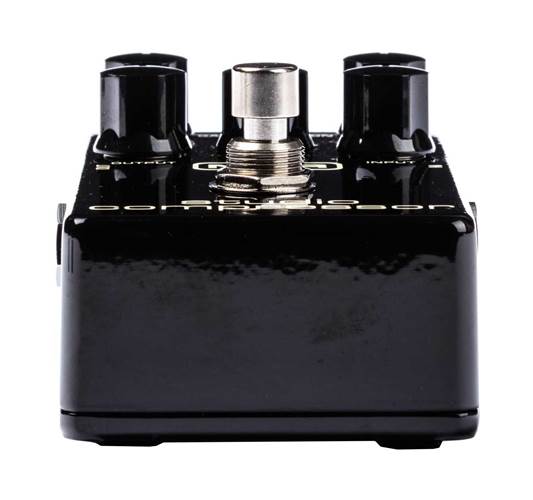

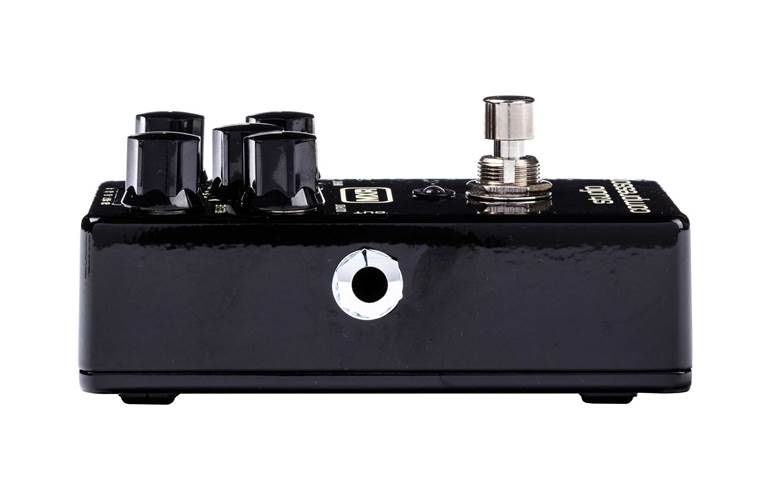

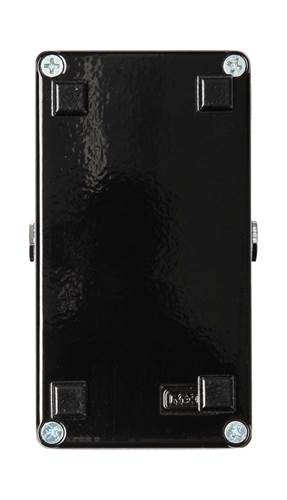

MXR M76 Studio Compressor
Image Gallery
RRP £224.99 Save £25.99
£199.00
Out of Stock
Please contact us for an estimated delivery time.Includes Christmas Exchange & 3-Year Warranty
Frequently Bought Together
Recommended Bundles
Manufacturer's ID: JD-M76
The MXR design team took a classic recording studio fixture and stuffed it into a pedalboard-friendly box. The Studio Compressor features Attack, Release, Ratio, Input, and Output controls so you can fine-tune your compression level—from subtle to squashing—right on stage with visual feedback from a bright LED gain-reduction status meter. Constant Headroom Technology provides tons of headroom for clear, transparent performance that's as dynamic as you need it to be. It's all packed into a durable, lightweight aluminum-housing that's the size of a Phase 90.
Specification
| Input Impedance | 1 MΩ |
| Output Impedance | 600 Ω |
| Max Input Level | +14 dBV |
| Max Output Level | +8.5 dBV |
| Frequency Response | ±1 dB, 20 Hz to 20 kHz |
| Noise Floor* | -90 dBV |
| THD** | < 0.5% |
| Gain | 31 dB |
| Compression Ratio | 4:1, 8:1, 12:1, 20:1 |
| Attack Time | 20 µs to 800 µs |
| Release Time | 50 ms to 1.1 s |
| Bypass | True Hardwire |
| Current Draw | LEDs OFF 14 mA - LEDs ON 19 mA |
| Power Supply | 9 volts DC |
