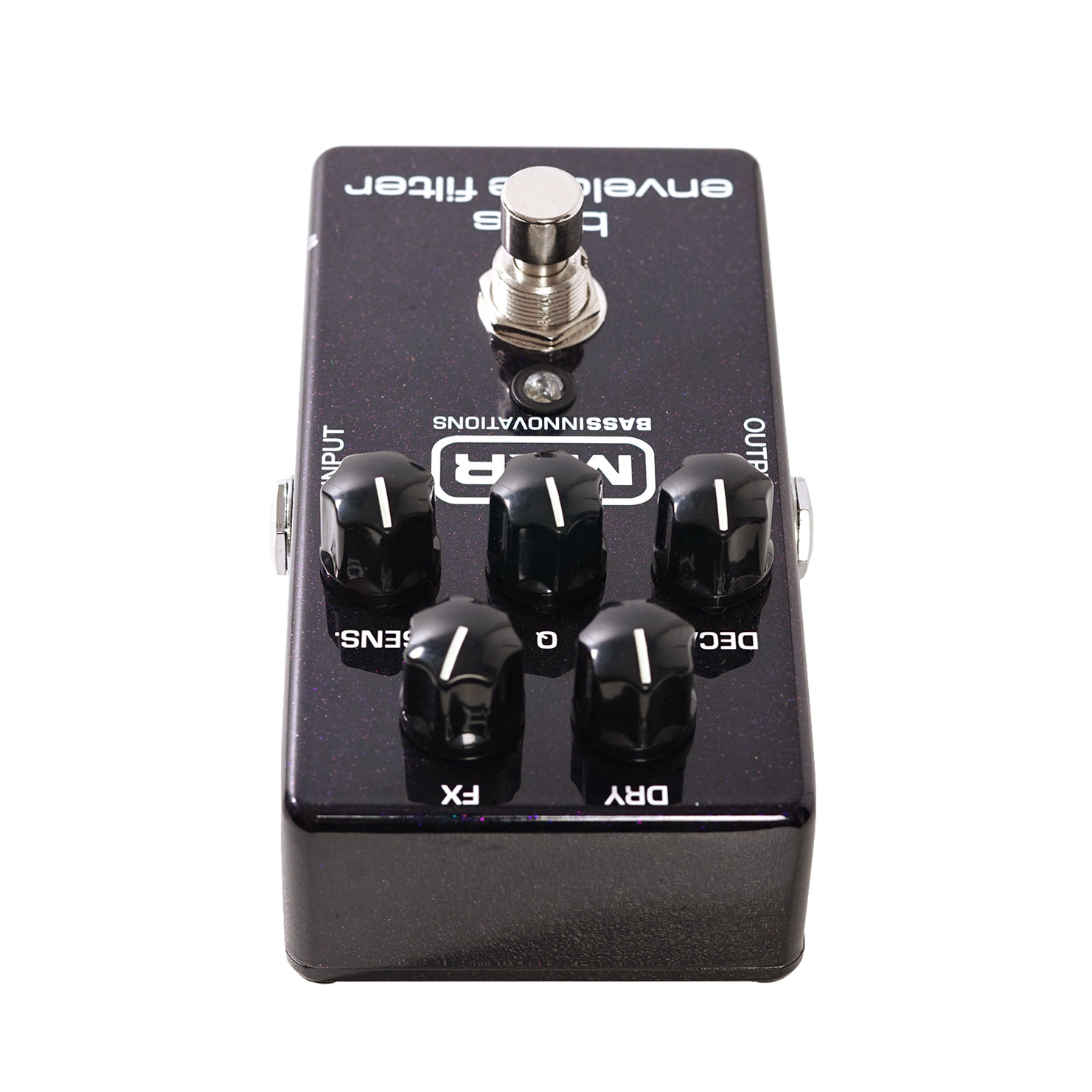

MXR M82 Bass Envelope Filter (Pre-Owned)
Image & Video Gallery
Frequently Bought Together
Manufacturer's ID: MXR-EFX-M82
The Bass Envelope Filter delivers classic, analog, envelope filter sounds in an easy-to-use and compact pedal designed specifically for bass. Separate Dry and Effect controls let you dial in the perfect mix of effected and direct signals, so you can bring the funk without losing the low end. It’s wide range of filter tones can be shaped with the Decay and Q controls, and a simple twist of the Sensitivity knob can tailor the pedal for your attack—as well as adjust for passive or active basses.
Condition Report
At guitarguitar, we award our used gear a grade from 1-5 according to its overall condition, with 5 being the best.
This item was appraised as follows:
Grade 4 out of 5 - Item shows some mild and/or minor signs of use such as superficial scuffs and marks. The unit functions as it should and is ready to use immediately.
Additional Information: Boxed
We take care to photograph any features, wear, tear, or modifications you might want to see before you make the decision to buy.
All of our pre-owned electronics are covered by our 3-month warranty and have been inspected and play-tested before resale.
Specification
- Input Impedance: 1 MΩ
- Output Impedance: 100 Ω
- Max Input Level*: -15 dBV
- Max Output Level: +8 dBV
- Noise Floor*: -94 dBV
- Filter Sweep (fc): 76 Hz to 3.2 kHz
- Sensitivity Range: 46 dB
- Max Sensitivity at 500 Hz
- fc = 3.2 kHz -23 dBV
- fc = 100 kHz -39 dBV
- Decay Stop Freq.: 76 Hz to 1.3 kHz
- Filter Gain at fc
- Q Min, fc = 76 Hz +8 dB
- Q Max, fc = 76 Hz +18 dB
- Q Min, fc = 3.2 kHz +8 dB
- Q Max, fc = 3.2 kHz +26 dB
- Bypass: True Hardwire
- Current Draw: 6 mA
- Power: 9 volts DC
