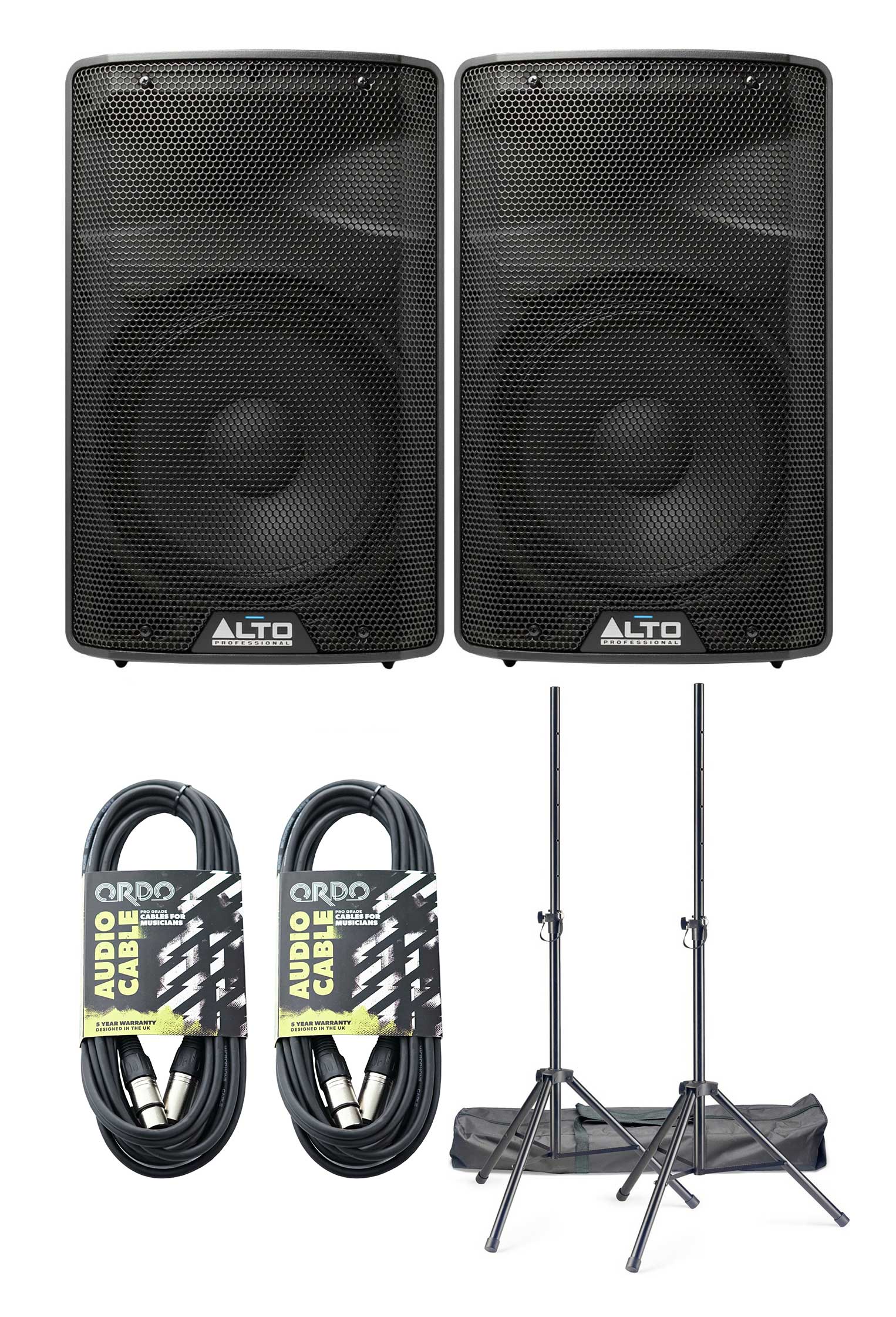

Alto TX315 Speaker Bundle

Alto TX315 Speaker Bundle

This PA bundle features a pair of Alto TX315 speakers, plus speaker stands and two XLR cables. It's an ideal vocal PA and louder background music speaker option for small to large-sized rooms and is ideal for bands, DJs and for venue installations.

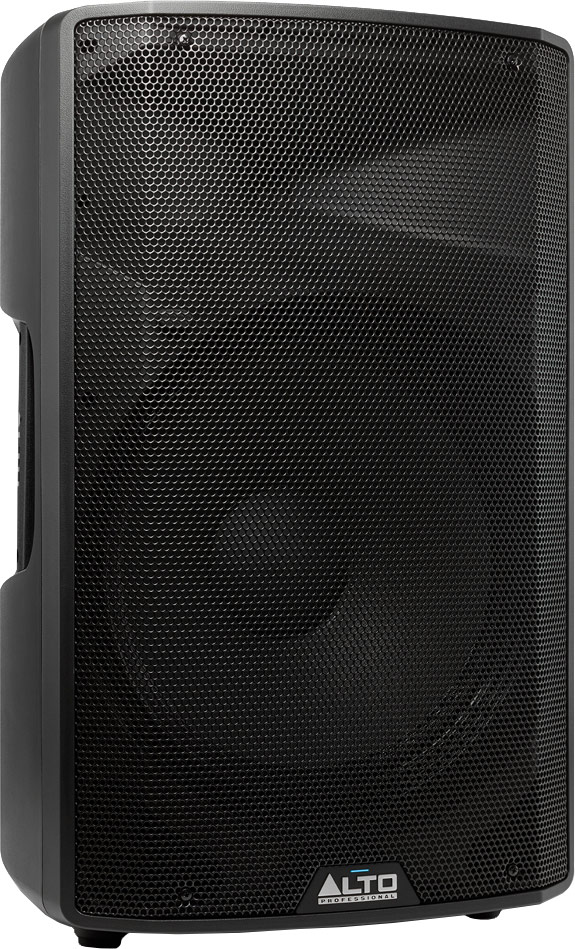

TX315 700W Powered Speaker (Pair)

Introducing the Alto TX315, a 700-watt powered speaker perfect for a variety of live sound situations. With the TX3 Series, Alto Professional has created a family of powered loudspeakers suitable for your most demanding gigs, night after night. Utilizing much of the technology of our acclaimed TS3 series, the new TX3 Series delivers the power and clarity you need to sound your best.

The TX315 features a bi-amplified 2-way designs, with a long-excursion woofer and a 1-inch titanium compression driver in a precision horn. The horn design of the TX3 Series improves high-frequency performance and produces a very precise 90˚H X 60˚V radiation pattern—ideal for optimal audience coverage.

The TX315 Series are housed in rugged, lightweight, easily transportable cabinets. The trapezoidal shape enables either upright or wedge monitor positioning and the full-sized steel grille gives complete driver protection. These speakers are built for continuous heavy-duty use. Add to that a full complement of inputs/outputs and mounting options and it’s easy to see that the TX315 plays an indispensable role in your performance.

System Type	2-way active ported loudspeaker
Drivers	Low-Frequency: 15.0” (381 mm) driver, 2.0” (51 mm) voice coil
	High-Frequency: 1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil
Amplifier	700 watts (peak), 350 (continuous), Class D power
Horn Coverage	90º horizontal x 60º vertical (nominal)
Frequency Response	65 Hz – 20 kHz (-3 dB)
Crossover Frequency	2.5 kHz
Max SPL	121 dB @ 1 m
Equalization	Contour switch with low- and high-frequency +3 dB boost

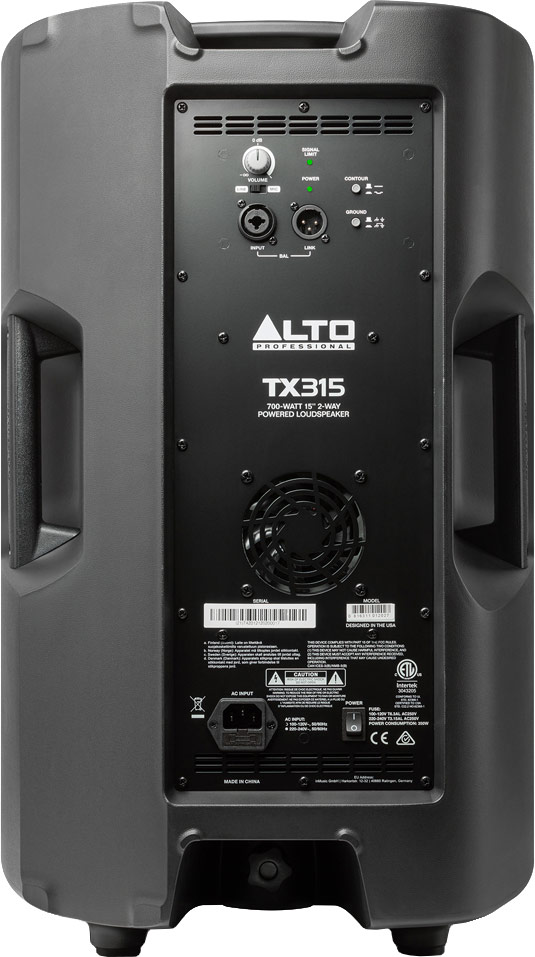

Connectors	(1) XLR balanced input (Line/Mic)
	(1) XLR output (Link)
	(1) IEC power cable input
Controls	Power switch, volume control knob, contour switch, ground-lift switch
Indicators	(2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
Power	Connection: IEC
	Voltage: 100–120 V~, or 220–240 V~; 50/60 Hz
	Fuse: 100–120V T6.3AL AC250V or 220–240V T3.15AL AC250V
	Consumption: 350 W
Protection	Thermal, overload analog limiter/compressor
Enclosure	Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
Mounting/Installation	Standard 36 mm pole socket, wedge monitor
Dimensions (height x width x depth)	24.9” x 15.2” x 14.6”
	634 x 386 x 371 mm
Weight	31.7 lb
	14.4 kg

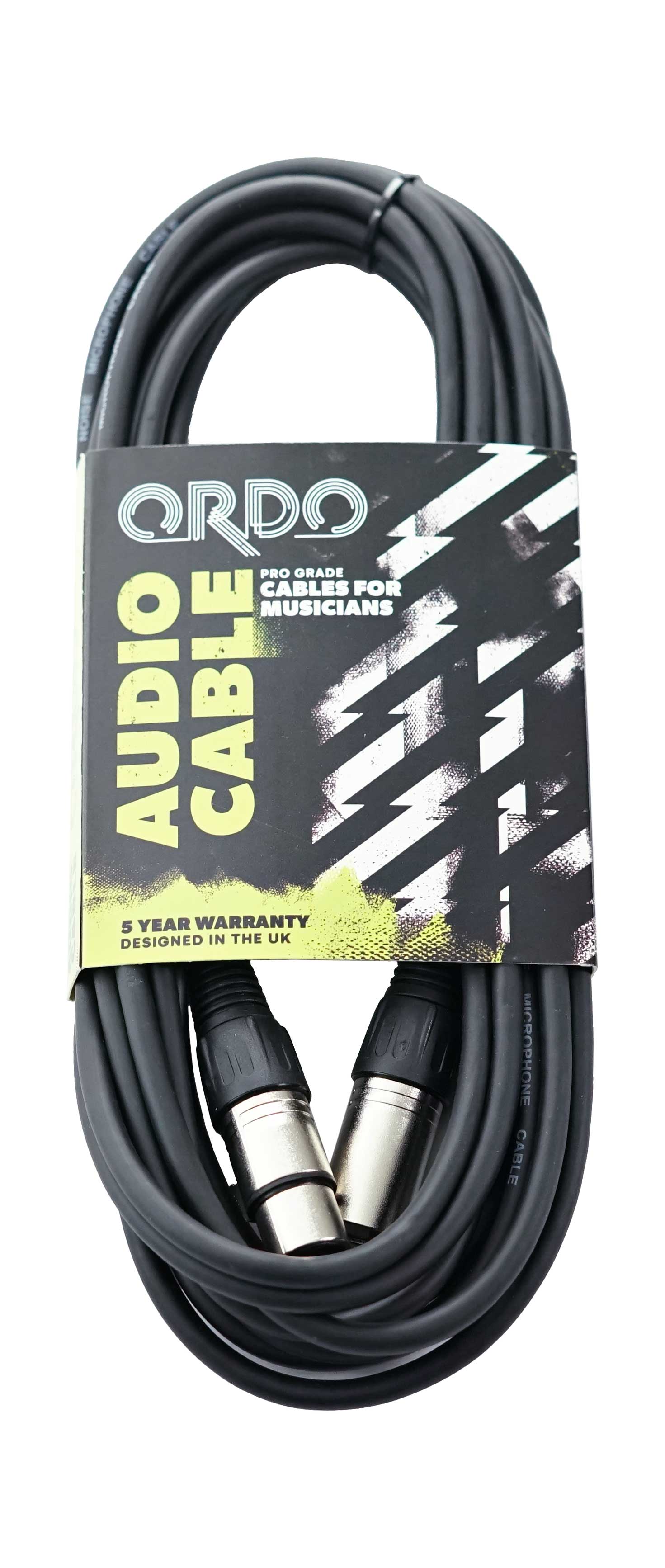

20ft/6m XLR Microphone Cable (Pair)

Heavy duty 6m stereo microphone cable.

ORDO cables are constructed from premium grade materials to provide reliable operation you can depend on and are designed to endure the rigors of use in the rehearsal room, recording studio and on stage.

• XLR to XLR
• Length: 600cm
• Colour: Black

S-1SPK1 Set of Speaker Stands with Bag

The ORDO S-1SPK1 set includes a pair of heavy-duty PA speaker stands with a carry bag. The stands feature a steel construction and are both foldable and height adjustable and include a standard 35mm speaker mount.

Size and Weight

• Standard pole mount (35mm / 1-3/8 inch)
• Height: 113 - 187 cm (44.5 - 73.5 inch)
• Load capacity: 60kg / 132lbs
• Weight: 3.25kg / 7.16lbs per stand

Manufacturer's ID: TX315XUK
