Electro Voice ELX200-12P Speaker Bundle

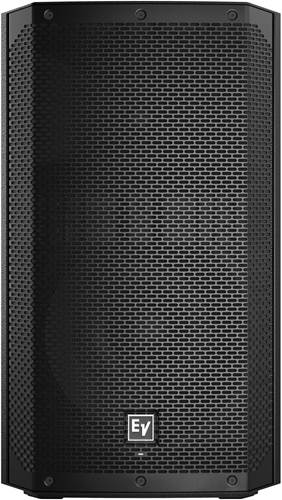

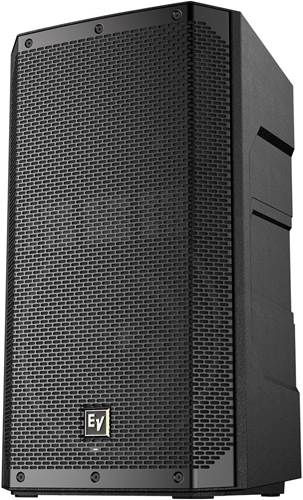

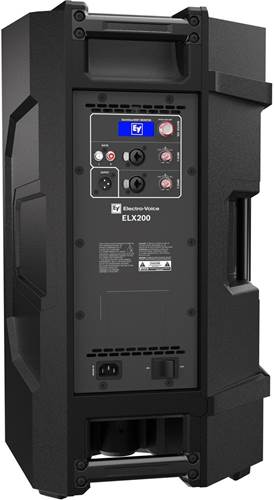

ELX200-12P Powered Speaker (Pair)

ELX200-12P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1C 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

Standout Features

• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
• QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
• High-efficiency 1200 W Class-D power amplifier delivers up to 130 dB peak SPL utilizing transducers designed and engineered by EV.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
• Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

Frequency response (-3 dB)	57 Hz - 16 kHz¹
Frequency range (-10 dB)	51 Hz - 20 kHz¹
Maximum SPL	130 dB²
Coverage (H x V)	90° x 60°
Power rating	1200 W
LF transducer	EVS-12M 300 mm (12 in)
HF transducer	DH-1C 1-inch titanium compression driver
Crossover frequency	1700 Hz
Connectors	(1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Enclosure	Polypropylene
Grille	18 AWG steel with powdercoat
Suspension	(3) M10 suspension points
Color	Black or White
Dimensions (H x W x D)	629 mm x 363 mm x 344 mm (24.8 in x 14.3 in x 13.6 in)
Weight	15.6 kg (34.4 lb)
Power consumption	100 - 240 V~, 50 - 60 Hz, 1.8A³

20ft/6m XLR Microphone Cable (Pair)

Heavy duty 6m XLR to XLR microphone cable.TOURTECH cables are constructed from premium grade materials to provide reliable operation you can depend on and are designed to endure the rigours of use in the rehearsal room, recording studio and on stage.

• XLR to XLR
• Length: 600cm
• Colour: Black

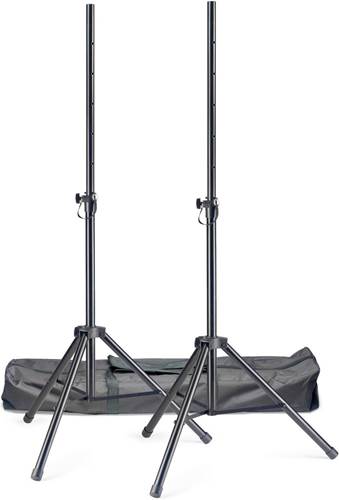

TTS-SPQ10 Set of Speaker Stands with Bag

Size and Weight

• Standard pole mount (35mm / 1-3/8 inch)
• Height: 113 - 187 cm (44.5 - 73.5 inch)
• Load capacity: 60kg / 132lbs
• Weight: 3.25kg / 7.16lbs per stand

Manufacturer's ID: ELX200-12P-EU
