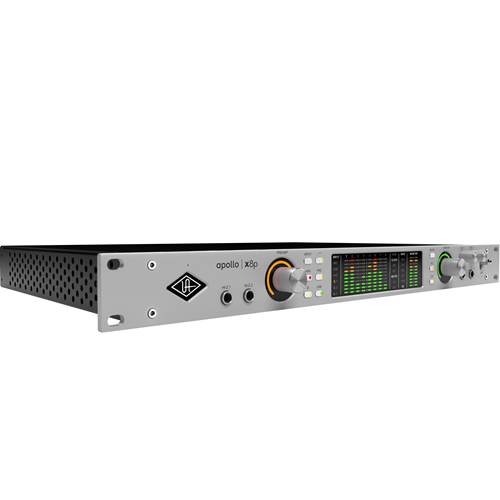

Universal Audio Apollo x8p Gen 2 Studio+ Edition (Rack/TB3/MAC/WIN)

Rackmount 16 x 22 Thunderbolt audio interface with eight Unison mic preamps, elite-class Apollo X Gen 2 audio conversion, Auto-Gain, Apollo Monitor Correction, up to 7.1 surround sound with Bass Management, HEXA core DSP plug-in processing, and premium software suite for Mac or Windows.

Record big sessions with authentic analog sound.

UA’s next generation of Apollo x8p interfaces is here, for producers and engineers who need highest-resolution audio conversion, eight Unison™ mic pr eamps, and HEXA Core DSP processing for recording and mixing large sessions with world-class UAD plug-ins from Auto-Tune, Neve, Manley, Avalon, SSL, and hundreds more.

Used by top producers and engineers around the globe, Apollo x8p is the world’s most trusted audio interface for professional audio production, putting timeless sound and legendary UA craftsmanship right in your rack.

Key Benefits

• Hear next generation audio conversion with the widest dynamic range and lowest distortion of any Apollo
• Experience authentic analog sound with Unison preamps, letting you record in realtime through gear from Neve, API, Avalon, Fender, and more
• Access the full library of 200+ UAD DSP and Native plug-ins, including award-winning titles like Capitol Chambers, Sound City Studios, EL8 Distressor, and more
• Mix with confidence in any room or through headphones using Apollo Monitor Correction powered by Sonarworks®
• Use Auto-Gain to set your levels across multiple inputs in seconds and never miss the take
• Hear all the low-end detail in your mixes using bass management to add a subwoofer to your monitor setup
• Quickly set up low-latency cues, plug-in scenes, and immersive audio monitoring with the UAD Console app
• Get thousands of dollars in award-winning UAD plug-in titles from Auto-Tune, Fairchild, Teletronix, and more with a choice of Essentials+ or Studio+ Editions

Add the World’s Most Trusted Interface to Your Rack

Universal Audio built Apollo x8p for pro engineers and producers who need highest-quality audio and expanded analog inputs for larger sessions. With its award-winning Apollo X sound—now with unprecedented dynamic range and enhanced D/A monitoring—Apollo x8p puts authentic analog sound right in your rack.

Record Through Eight Unison Preamps

With Unison™ technology, Apollo x8p lets you track in realtime with the sound of classic preamps and channel strips from Neve, Manley, API, and dozens more, giving you the same rich analog textures used on the greatest recordings of our time.

Unlock Authentic Analog Sounds

Right out of the box, Apollo x8p gives you the tools used by the world’s best engineers. Along with included Teletronix LA-2A compressors, Pultec EQs, and amps from Marshall and Ampeg you can tap into the entire library of over 200 UAD plug-ins and unlock proven hit-making sounds like Ocean Way Studios, Capitol Chambers, and many more.

Hear the Details Like Never Before

Now in its Gen 2 design, Apollo x8p features UA’s highest-resolution D/A converters ever paired with Apollo Monitor Correction powered by Sonarworks.® This means that when you playback your audio through monitors or headphones, you’ll not only hear the most pristine representation of your recordings, there will be no surprises when you listen to your final mix or master.

Find Your Flow in the UAD Console App

Just like an analog studio, where the console is the heart of the workflow, Apollo x8p has a powerful digital mixing engine where you can control plug-in routing and monitoring. And with the latest features like Auto-Gain, Bass Management, 7.1 Surround Sound and Plug-In Scenes, it’s easy to find a flow that fits your needs.

A Hybrid System, Made for Your Mission

Combine Apollo x8p’s HEXA Core DSP with native processing from your host computer to produce large sessions with complex plug-in chains—a powerhouse hybrid workflow that outpaces any native-only recording setup.

Expand Your Studio as You Grow

Build your studio by linking up to four Thunderbolt Apollo interfaces with up to 128 channels of premium I/O to your DAW, and control it all from your desktop using Apollo Twin or x4. So no matter how far your music takes you, an Apollo will always be in reach.

Key Features

• 16 x 22 Thunderbolt audio interface with HEXA Core DSP plug-in processing
• Eight Unison mic preamps, two Hi-Z instrument inputs, DB-25 input (line 1-8), two optical Toslink I/O (ADAT S/MUX or S/PDIF), word clock I/O (BNC)
• Two 1/4" monitor outs, DB-25 output (ALT / 7.1 surround), two 1/4" TRS headphone outs
• Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution featuring Dual-Crystal Clocking for ultra-low jitter at all sample rates
• Enhanced D/A for critical monitoring and playback with 130 dB dynamic range and astonishingly low THD of-127 dB
• Calibrate your main monitor and headphone outputs with Apollo Monitor Correction powered by Sonarworks®
• Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
• Updated UAD Console app featuring Auto-Gain, Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
• Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
• Includes up to 50+ UAD plug-ins with Essentials+ or Studio+ Editions
• Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more
• Expandable with Thunderbolt Apollo interfaces or select models over Dante
• Free industry-leading technical support from knowledgeable audio engineers

Included Plug-Ins in Studio+ Edition

• Channel Strips & Preamps (9)
• Avalon VT-737sp Channel Strip
• Century Tube Channel Strip
• CS-1 Channel Strip
• Helios Type 69 Preamp & EQ
• Manley Reference Microphone Preamp
• Precision Channel Strip
• UA 610-A Preamp & EQ
• UA 610-B Preamp & EQ
• V76 Preamplifier
• Compressors / Limiters (17)
• dbx 160 Compressor / Limiter
• Empirical Labs Distressor
• Fairchild 670 Legacy
• Fairchild 660 Compressor
• Fairchild 670 Compressor
• Teletronix LA-2 Classic Leveler
• Teletronix LA-2A Gray Classic Leveler
• Teletronix LA-2A Silver
• Classic Leveler
• Teletronix LA-2A Legacy Leveling Amplifier
• Teletronix LA-3A Classic Audio Leveler
• UA 1176 Rev A Classic Limiter
• UA 1176AE Classic Limiter
• UA 1176LN Rev E Classic Limiter
• UA 1176LN Legacy
• UA 1176SE Legacy
• UA 175B Classic Limiter
• UA 176 Classic Limiter
• Equalizers (6)
• Helios Type 69 Legacy EQ
• Pultec EQP-1A Legacy EQ
• Pultec EQP-1A Passive EQ
• Pultec HLF-3C Passive EQ
• Pultec MEQ-5 Passive EQ
• Pultec Pro Legacy EQ
• Special Processing (7)
• Auto-Tune Realtime Access
• Auto-Tune Realtime Advanced
• Auto-Tune Realtime X
• Oxide Tape Recorder
• Precision Enhancer Hz
• Studer A800 Multichannel Tape Recorder
• Verve Analog Machines Essentials
• Instruments (6)
• Electra 88 Vintage Keyboard Studio
• Moog Minimoog
• Opal Morphing Synth
• PolyMAX Polyphonic Synth
• Ravel Grand
• Piano
• Waterfall B3 Organ
• Delay & Modulation (6)
• Brigade Chorus Pedal
• Galaxy Tape Echo
• Precision Delay Mod
• Precision Delay Mod L
• Studio D Chorus
• Waterfall Rotary Speaker
• Reverbs & Rooms (4)
• Lexicon 224 Digital Reverb
• Precision Reflection Engine
• Pure Plate Reverb
• RealVerb Pro Custom Room Modeler
• Guitar & Bass (3)
• Ampeg SVT-VR Classic Bass Amplifier
• Marshall Plexi Classic Amplifier
• Raw Distortion
