Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface

Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface

Image Gallery

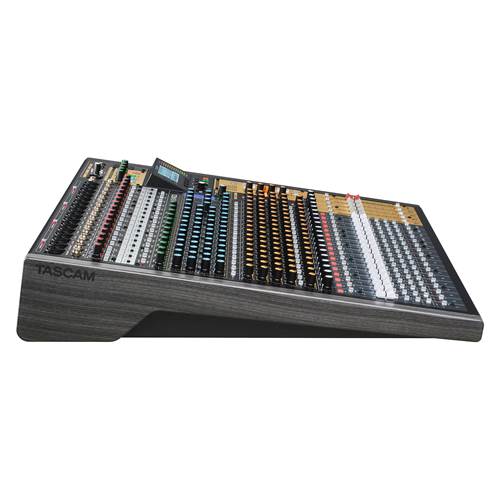

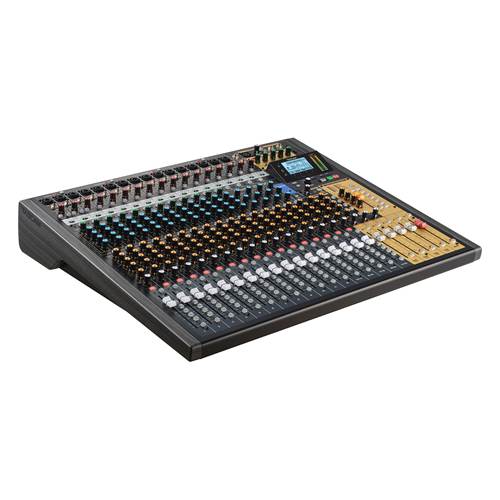

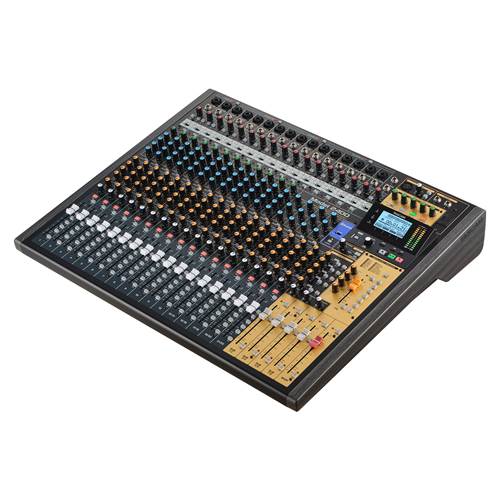

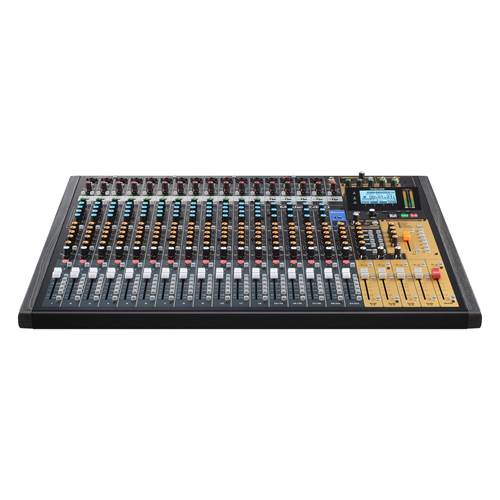

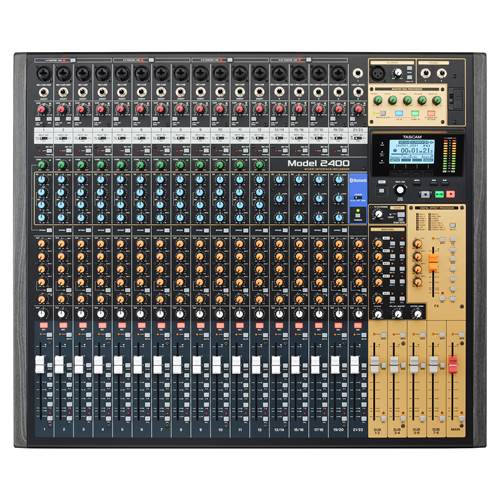

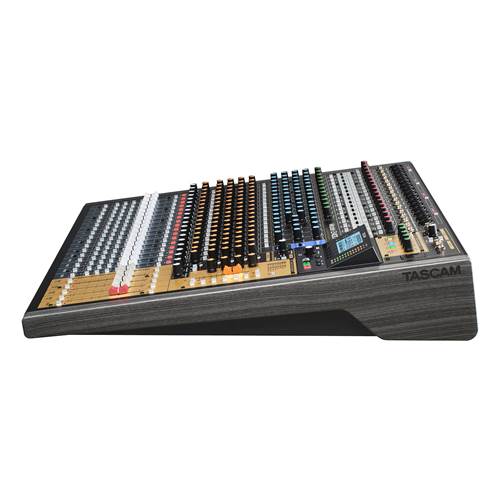

Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface Front View
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface Front View
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface Front View
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface Front View
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface Front View
Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface Front View

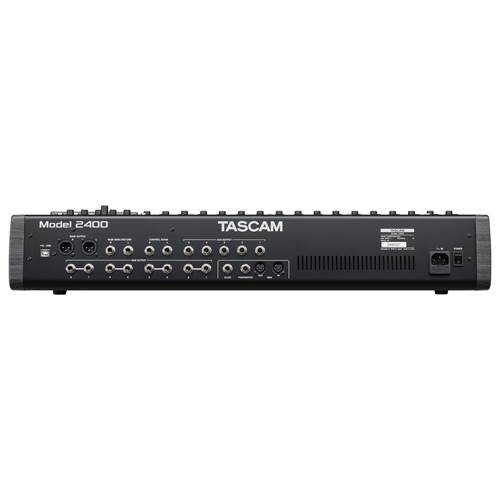

Tascam MODEL 2400 24 Channel Flagship Analogue Recording Console and Live Mixer with Audio Interface Back View

£1,799.00

Available to Order

Place your order today and we will email you when we have an estimated delivery date.

Includes Extended Exchange & 3-Year Warranty

We're the first and only UK guitar retailer to offer a 3-year warranty & extended Christmas Exchange as standard.
Buy now and exchange until 31st January 2025

Notify me when in stock

We'll share some similar product recommendations, and if the item does not come back in stock we will let you know.

Manufacturer's ID: model2400

The 24-Track Flagship Recording Console

22 channels, 24 tracks, one solution – from performance to recording, Model 2400 redefines what you can do with a studio recording and live mixing console. With more Aux sends, four stereo subgroups, MIDI/MTC and many more advanced features, the Model 2400 is the new flagship of the Tascam Model series.

Streamline Your Mix Process with Advanced Onboard Processing

The versatility of the Model 2400 doesn’t affect its mixing capabilities in the slightest. With per-channel compression, multiple sub groups, and master stereo bus processing including compression and EQ, you’ll have the pro-level mix control you need in any scenario.

Taking your project from tracking to a final master on the Model 2400 couldn’t be simpler.

22 Channels and 24 Tracks, One Solution

With comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.

Insert Professional Processors and Effects

Insert points on channels 1-12 allow you to easily integrate a studio rack full of processors and effects units. And, in addition to the onboard Master Bus processing, a send/return loop on the Main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers and sonic exciters.

Ample Aux and Sub Outputs

With 5 Aux sends and 4 stereo sub groups, Model 2400 handles advanced mixing duties with ease. Create more monitor mixes without sacrificing an aux for effects. Connect multiple pairs of studio monitors for checking your mixes.

In your studio or on stage, Model 2400 delivers the comprehensive connectivity and routing you need.

Professional Recording Capabilities

Model 2400 seamlessly integrates multitrack recording with studio and live mixing. With the ability to record 24 tracks (22 inputs plus the stereo master) of high-quality audio direct to SD card media, Model 2400 is a powerful recording solution even if you’re a DAW-less producer.

Specification

Recorder

  • Recording media:
    • SD (Class 10 or higher)
    • SDHC (Class 10 or higher)
    • SDXC (up to 512 GBytes, Class 10 or higher)
  • File system:
    • SD: FAT16
    • SDHC: FAT32
    • SDXC: exFAT
  • Recording file formats: WAV (BWF), 44.1/48 kHz, 16/24 bit (maximum file size: 2 GBytes)
  • Playback file formats: WAV, BWF (44.1/48 kHz, 16/24 bit)
  • Recordable tracks: 24 (22 tracks + stereo mix)

Audio inputs and outputs

  • Microphone inputs (MIC, 1–12, 13,15,17,19):
  • XLR-3-31 (combo jack), balanced (1: GND, 2: HOT, 3: COLD)
  • Line/Instrument inputs (LINE/INST, 1–2):
  • 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
  • Line inputs (LINE, 3–12):
  • 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
  • Stereo line inputs (LINE L/MONO, R, 13/14 to 21/22):
  • 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
  • Inserts (1–12):
  • 6.3-mm TRS phone jack (Tip: Send, Ring: Return, Sleeve: GND)
  • Talkback input:
  • XLR-3-31, balanced (1: GND, 2: HOT, 3: COLD)
  • Main output (MAIN OUTPUT L/R):
  • XLR-3-32, balanced (1: GND, 2: HOT, 3:COLD)
  • Main inserts (MAIN SEND/RETURN L/R):
  • 6.3-mm TRS phone jack (Tip: Send, Ring: Return, Sleeve: GND)
  • Control Room outputs (CONTROL ROOM L/R):
  • 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
  • Aux outputs (AUX OUTPUT 1–5):
  • 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
  • Sub group outputs (SUB OUTPUT 1–2, 3–4, 5–6, 7–8) :
  • 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
  • Phones output 1/2:
  • 2 × 6.3-mm stereo phone jack

Control inputs/outputs

  • USB port: USB Type-B/USB 2.0 High Speed (480 Mbit/s)
  • MIDI input and output: 5-pin DIN connector

USB audio

  • Sampling rate: 44.1 kHz, 48 kHz
  • Bit depth: 16 bit, 24 bit
  • Maximum number of audio channels: 24 inputs, 22 outputs

Bluetooth

  • Version: 5.1

Computer system requirements

  • Windows:
    • Windows 11
    • Windows 10 (64-bit)
  • Compatible computers:
    • Windows-compatible computer with a USB 2.0 (or higher) port, using Tascam driver, operation not guaranteed with ARM64 CPUs
  • Display requirements (settings panel software):
    • 1280 × 720 or higher, True colour recommended



  • Mac:
    • macOS Sonoma (14)
    • macOS Ventura (13)
  • Compatible computers:
    • Apple Mac computer with a USB 2.0 (or higher) port
  • Display requirements (settings panel software):
    • 1280 × 720 or higher
    • True colour recommended

Power supply and other specifications

  • Power: AC 100–240 V, 50/60 Hz
  • Power consumption: 65 W
  • Dimensions (W × D × H):
    • 681 mm × 568 mm × 133 mm (overall)
    • 639 mm × 568 mm × 133 mm (without side panels)
  • Weight: 14 kg
  • Included items: AC power cord, Startup Guide, Registration Guide
