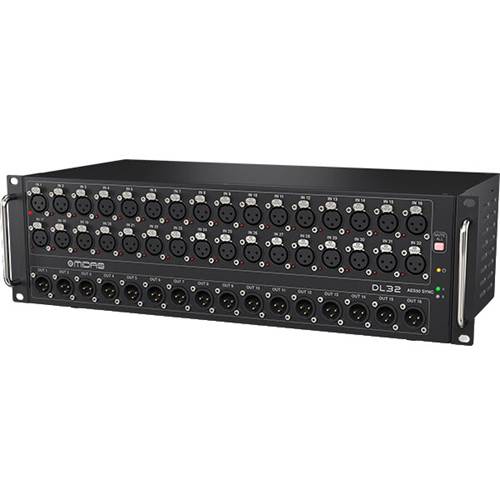

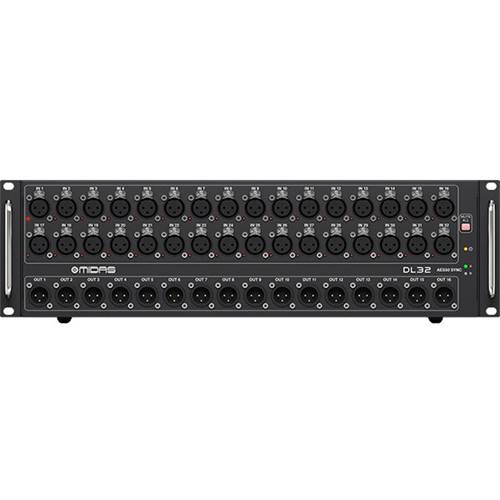

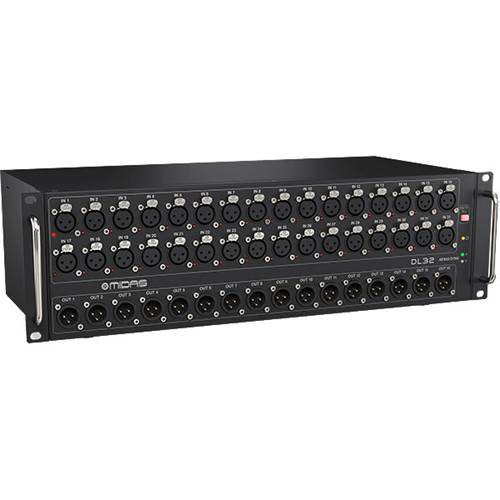

Midas DL32 Digital Stage Box
![Midas DL32 Digital Stage Box Midas DL32 Digital Stage Box](https://images.guitarguitar.co.uk/cdn/large/170/240520424002027f.jpg?h=500&maxwidth=770&scale=canvas&bg=ffffff&quality=70)
![Midas DL32 Digital Stage Box Midas DL32 Digital Stage Box](https://images.guitarguitar.co.uk/cdn/large/170/240520424002027f1.jpg?h=500&maxwidth=770&scale=canvas&bg=ffffff&quality=70)
![Midas DL32 Digital Stage Box Midas DL32 Digital Stage Box](https://images.guitarguitar.co.uk/cdn/large/170/240520424002027f2.jpg?h=500&maxwidth=770&scale=canvas&bg=ffffff&quality=70)
![Midas DL32 Digital Stage Box Midas DL32 Digital Stage Box](https://images.guitarguitar.co.uk/cdn/large/170/240520424002027b.jpg?h=500&maxwidth=770&scale=canvas&bg=ffffff&quality=70)
£1,249.00
Out of Stock
Please contact us for an estimated delivery time.Includes 30-Day Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: 000-BMD04-00010
Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32 Midas PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable. While Klark Teknik, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.
Specification
- 32 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
- 16 electronically balanced low impedance line level outputs
- ULTRANET personal monitoring system connectivity for in-ear applications
- Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
- Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes no merger or router required
- Automatic AES50 stage-split mode when connected between Midas M32 Series FOH and monitor consoles
- Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK connectors
- 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
- Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
- Mute All function for quietly patching any inputs on stage
- MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
- Features Neutrik etherCON AES50 and ULTRANET network ports
- Rugged 3U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
