QTX 192 Channel DMX Controller ...

£129.00 In Stock

Delivery on Monday

Click and Collect available

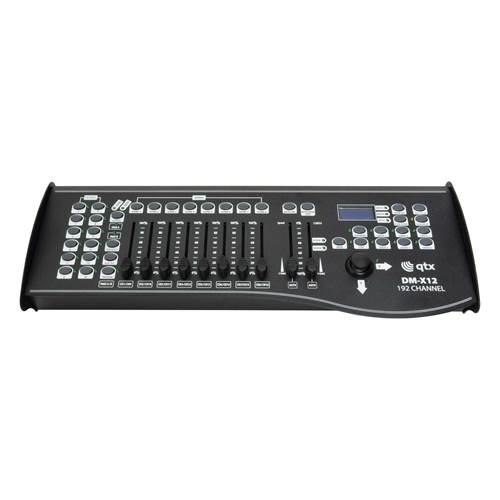

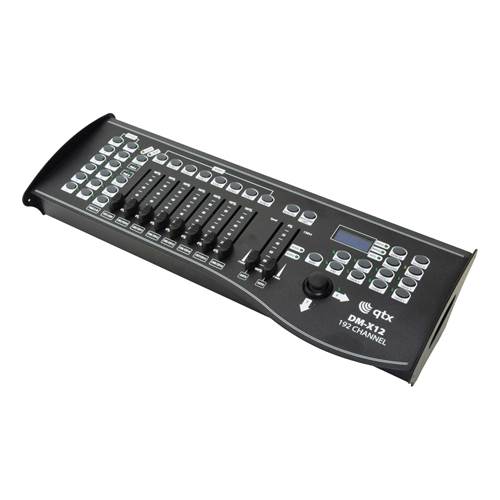

QTX 192 Channel DMX Controller with Joystick

Was £149.00 Save £20.00

£129.00

In Stock

2 Available

Order now for Delivery on Monday

Includes Christmas Exchange & 3-Year Warranty

We're the first and only UK guitar retailer to offer a 3-year warranty & extended Christmas Exchange as standard.
Buy now and exchange until 31st January 2025

Make up to 4 payments of £32.25 No fees.
Learn more about Klarna and Clearpay
18+, T&C apply, Credit subject to status.

Delivery on Monday

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
Collect on Tuesday
Glasgow
In Stock, Collect Today
Newcastle
Collect on Tuesday
Birmingham
Collect on Tuesday
Epsom
Collect on Tuesday
Camden
Collect on Tuesday

Manufacturer's ID: 154.092UK

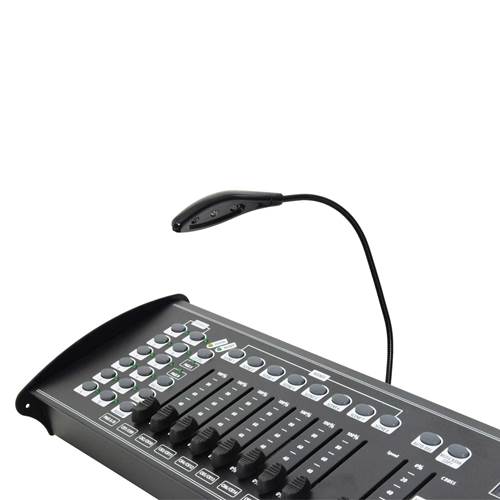

This 192 channel DMX controller has a joystick which can be programmed to control certain channels. This is then an ideal tool to fine tune the pan and tilt movements on a moving head or scanner. It comes complete with an LED gooseneck light that can be plugged in to the rear and help in dark environments. The unit itself has 12 scanner buttons, each controls up to 16 channels on each fixture, whilst the 30 programmable bank buttons hold 8 scenes each. These scenes can be programmed into 6 chase sequences each holding up to 240 scenes which can be triggered by sound, manually by tap or automatically by the time faders between 0.1 seconds and 10 minutes. This controller is ideal for small theatres or stage applications.

Specification

  • High quality LCD display with easy readout
  • Joystick to control X & Y parameters of a moving head / scanner
  • 12 scanners each with 16 channels
  • 30 banks each with 8 programmable scenes (240 scenes in total)
  • 8 channel slider with page up and page down
  • 6 chase banks
  • Music, auto or manually triggered chase sequences
  • Speed control from 0.1 second to 10 minutes
  • MIDI connection facility (MIDI IN) to run the unit synchronous with your MIDI unit or compatible software
  • Blackout button
  • File dump allows data to be sent or received between two units
  • Built-in microphone or LINE IN RCA jack socket for accurate audio triggering
  • LED gooseneck lamp provided

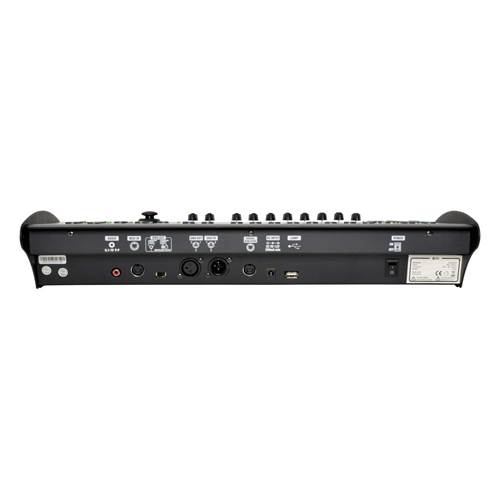

  • DMX polarity switch at the rear
  • Power failure memory
  • DMX channels : 192
  • Power supply: 9Vdc, 1A
  • Dimensions: 482 x 190 x 90mm
  • Weight: 3.0kg
