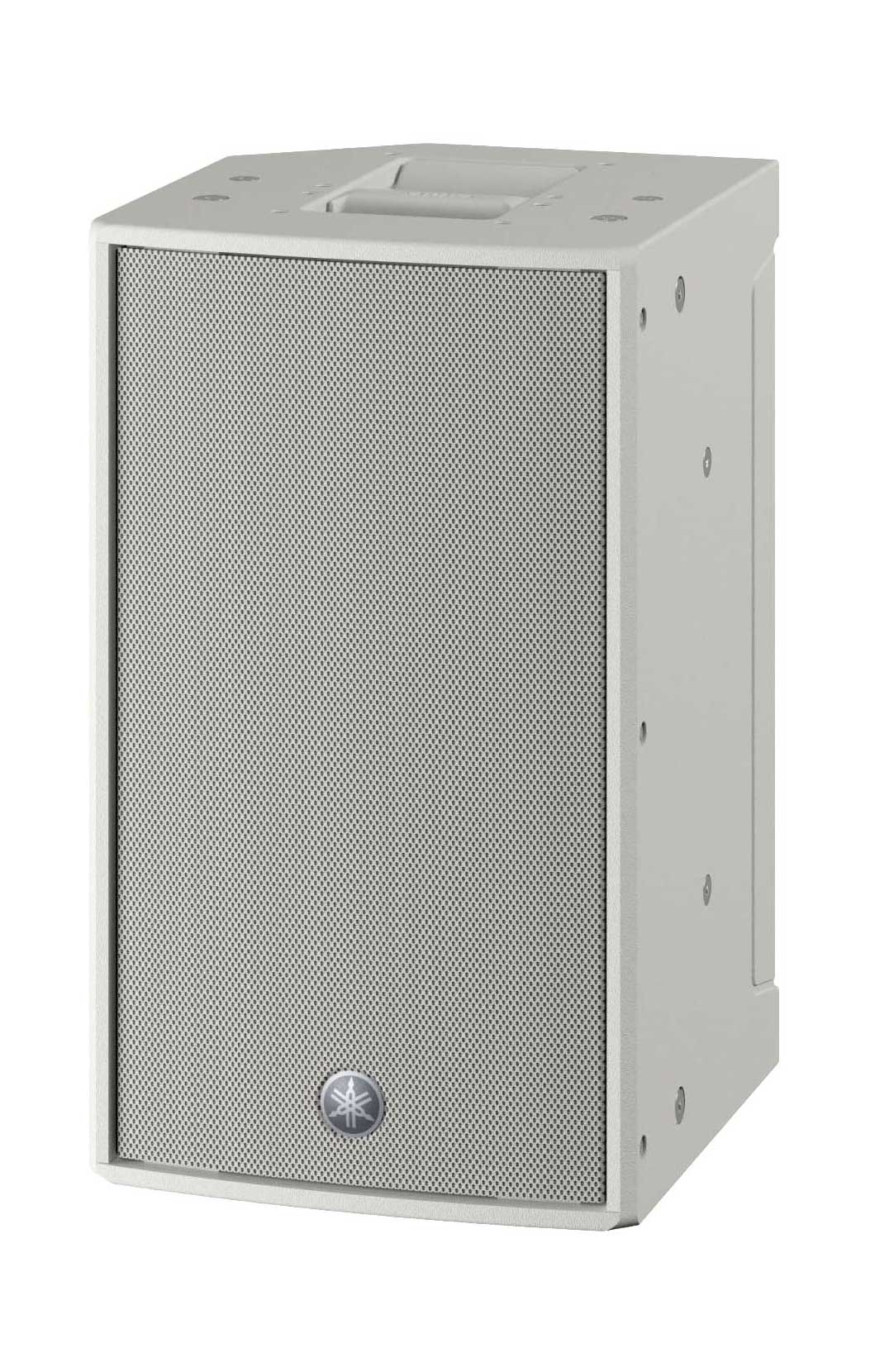

Yamaha DZR10W Powered Speaker (Ex-Demo) #21BFAJ01002
![Yamaha DZR10W Powered Speaker (Ex-Demo) #21BFAJ01002 Yamaha DZR10W Powered Speaker (Ex-Demo) #21BFAJ01002](https://images.guitarguitar.co.uk/cdn/large/170/230127399573008-10055228f.jpg?h=500&maxwidth=770&scale=canvas&bg=ffffff&quality=70)
![Yamaha DZR10W Powered Speaker (Ex-Demo) #21BFAJ01002 Yamaha DZR10W Powered Speaker (Ex-Demo) #21BFAJ01002](https://images.guitarguitar.co.uk/cdn/large/170/230127399573008-10055228f2.jpg?h=500&maxwidth=770&scale=canvas&bg=ffffff&quality=70)
![Yamaha DZR10W Powered Speaker (Ex-Demo) #21BFAJ01002 Yamaha DZR10W Powered Speaker (Ex-Demo) #21BFAJ01002](https://images.guitarguitar.co.uk/cdn/large/170/230127399573008-10055228b.jpg?h=500&maxwidth=770&scale=canvas&bg=ffffff&quality=70)
£799.00
In Stock
Order before 1PM for FREE Delivery Tomorrow
Includes 30-Day Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: CDZR10WUK
The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
- 2-way powered loudspeaker with a 2” HF and a 10" LF
- Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Floor monitoring setting
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
Condition Report
Unit is in good condition with minimal signs of use. Comes with original packaging and power supply.Specification
Speaker type |
2-way, Bi-amped Powered Speaker, Bass-reflex |
|
Frequency range (-10dB) |
44Hz - 20kHz |
|
Coverage area |
H90゚ x V60゚(Rotatable) |
|
Components |
LF |
10" Cone, 3" Voice Coil, Neodymium magnet |
MF |
- |
|
HF |
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
|
Crossover |
1.8kHz (FIR-X) |
|
Sampling frequency rate |
Internal |
96kHz and FIR Filter |
A/D D/A Converters |
96kHz AD/DA |
|
Maximum output level (1m; on axis) |
137dB SPL *1 |
|
Power rating |
Dynamic |
2000W (LF:1000W, MF/HF: 1000W) *2 |
Continuous |
1300W (LF: 920W, MF/HF: 380W) |
|
I/O Connectors |
Analog I/O |
Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
Others |
USB2.0 Host 5V 500mA for USB memory DATA storage/load |
|
AC |
IEC AC inlet x1 (V-Lock) |
|
Amplifier class |
Class-D |
|
Cooling |
Fan cooling, Variable speeds |
|
Power consumption |
45W (Idle), 150W (1/8) |
|
Handle |
Aluminium die-cast, Top x1, Side x1 |
|
Rigging |
M10 x8, M8 x2 |
|
Dimensions |
W |
315 mm (12.4") |
H |
537 mm (21.1") (with rubber feet) |
|
D |
345 mm (13.6") |
|
Net weight |
17.9kg (39.5lbs) |
|
Options |
U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10 |
|
Others |
Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black |
|
Floor Monitor Angle |
50° |
|
Pole socket |
Φ35 mm x2 (0° or -7°) |
