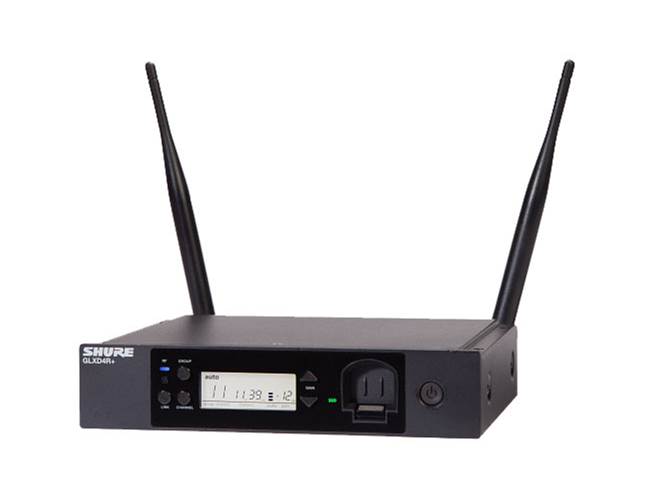

Shure GLXD24R+UK/SM58-Z4 Dual Band Handheld System
Image & Video Gallery
RRP £689.00 Save £40.00
£649.00
In Stock
Order before 4PM for FREE Delivery Tomorrow
Includes Christmas Exchange & 3-Year Warranty
Manufacturer's ID: GLXD24R+UK/SM58-Z4
GLX-D+ DUAL BAND DIGITAL WIRELESS
GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.
Specification
| Compatibility | With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions |
| Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions | |
| System Operating Range | Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions |
| Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions | |
| Transmit Mode | Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz) |
| Audio Frequency Response | 20 Hz – 20 kHz Note: Dependent on microphone type |
| Dynamic Range | 120 dB, A-weighted |
| RF Sensitivity | -88 dBm, typical |
| Total Harmonic Distortion | 0.07%, typical |
| RF Output Power | 10 mW E.I.R.P. max |
| Operating Temperature Range | -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range. |
| Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output. |
| Battery Life | Up to 12 hours |

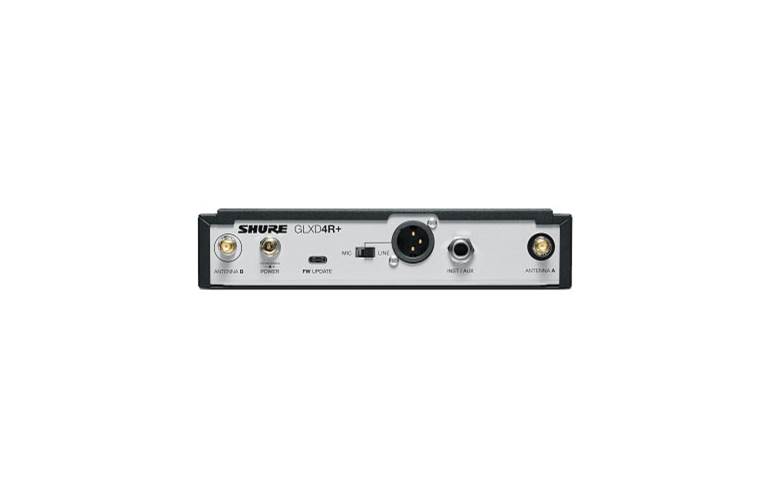

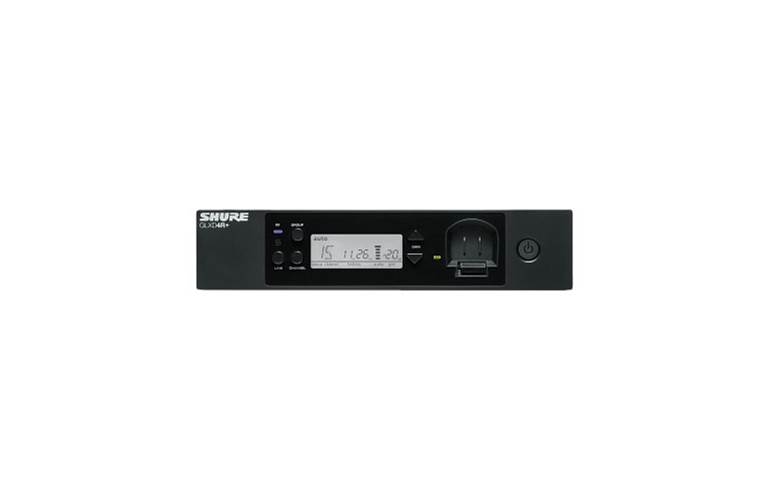

| GLXD4R+ DUAL BAND RACK RECEIVER | |
| Dimensions | 7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna |
| Weight | 30.5 oz (866 g) without batteries |
| Housing | Steel |
| Power Requirements | 14.5 V - 17 V, 600mA |
| Spurious Rejection | >35 dB, typical |
| Gain Adjustment Range | −18 to 42 dB in 1 dB steps |
| Phantom Power Protection | Yes |
| AUDIO OUTPUT | XLR Output (Balanced) / 6.35 mm (1/4") output (Impedance balanced) |
| Impedance | XLR Output: 100 Ω |
| 6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced) | |
| Mic/Line Switch | 30 dB Pad |

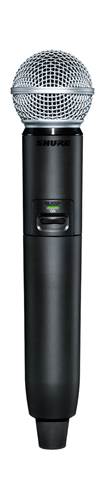

| SM58 | |
| Housing | Aluminum alloy, ABS plastic |
| Power Requirements | 3.6 V Rechargeable Li-Ion |
| RF Output Power | 10 mW E.I.R.P. max |
| Maximum Input Level | 146 dB SPL |
| DIMENSIONS | 51 mm, 2.0 in. / 246mm, 9.9 in. / 37 mm, 1.5 in. |
| WEIGHT | 275 g (9.7 oz), without battery |
