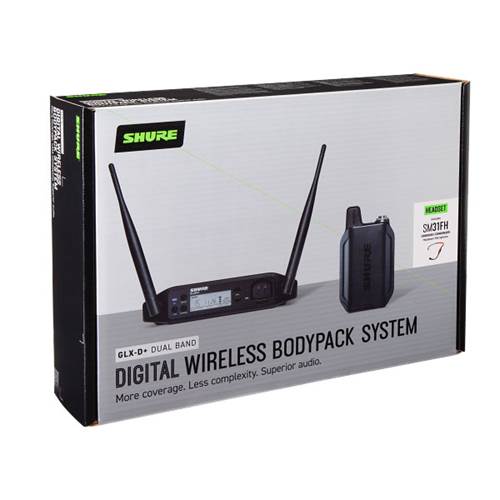

Shure GLXD14+UK/SM31-Z4 Dual Band Wireless Headset System
Image & Video Gallery
Was £599.00 Save £54.00
£545.00
In Stock
5 AvailableOrder before 4PM for FREE Delivery Tomorrow
Includes Christmas Exchange & 3-Year Warranty
Manufacturer's ID: GLXD14+UK/SM31-Z4
GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without
complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With
new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also
intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved
from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.
Specification
| Compatibility | With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions |
| Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions | |
| System Operating Range | Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions |
| Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions | |
| Transmit Mode | Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz) |
| Audio Frequency Response | 20 Hz – 20 kHz Note: Dependent on microphone type |
| Dynamic Range | 120 dB, A-weighted |
| RF Sensitivity | -88 dBm, typical |
| Total Harmonic Distortion | 0.07%, typical |
| RF Output Power | 10 mW E.I.R.P. max |
| Operating Temperature Range | -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range. |
| Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output. |
| Battery Life | Up to 12 hours |

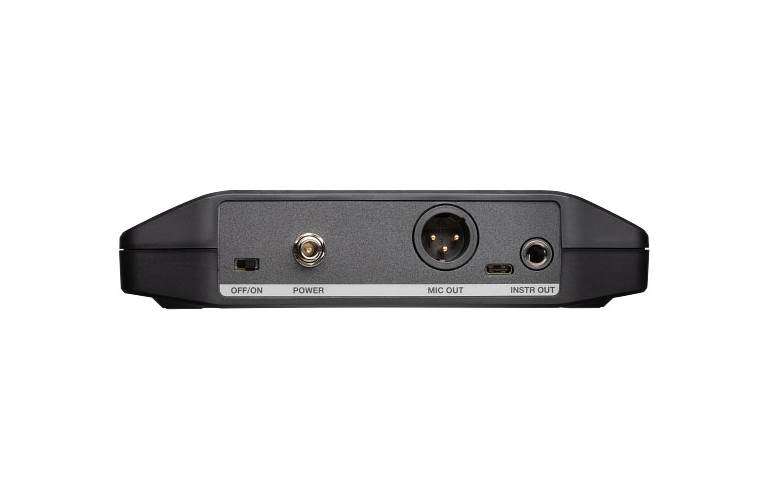

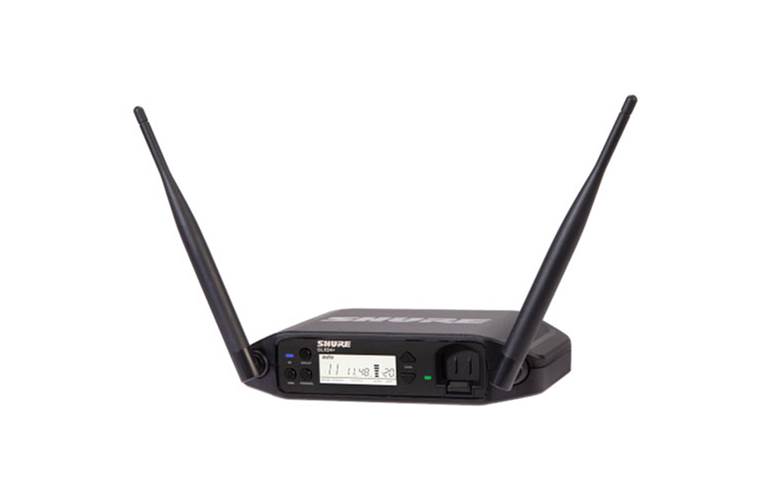

| GLXD4+ DUAL BAND WIRELESS RECEIVER | |
| Dimensions | 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm, H x W x D |
| Weight | 19.75 oz (560 g |
| Housing | Aluminum alloy |
| Power Requirements | 9 V - 15 V, 400mA (efficiency level VI power supply) |
| Spurious Rejection | >35 dB, typical |
| Gain Adjustment Range | −20 to 40 dB in 1 dB steps |
| Phantom Power Protection | Yes |
| AUDIO OUTPUT | 6.35 mm (1/4") output (Impedance balanced) |
| Impedance | 100 Ω (50 Ω, Unbalanced) |
| Audio Input Modes | Tuner or True Bypass |

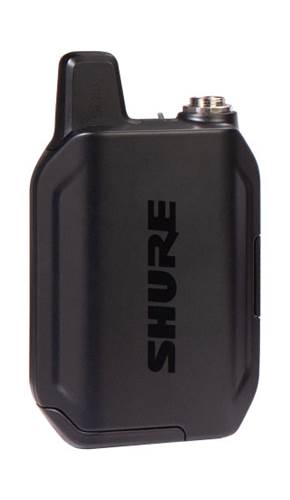

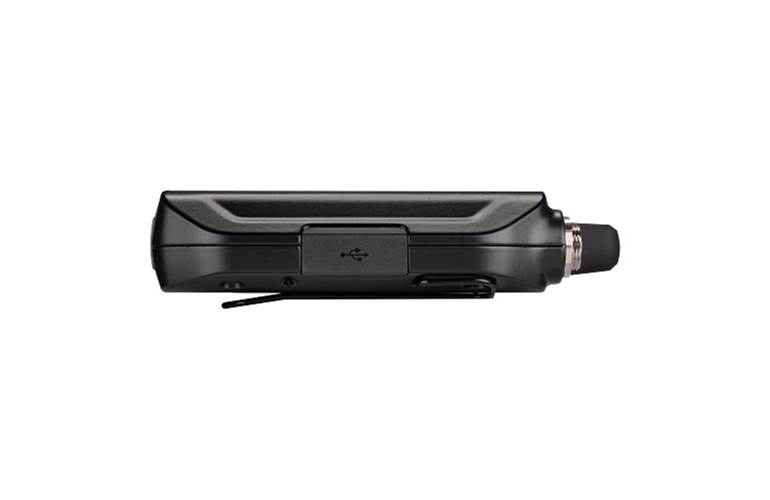

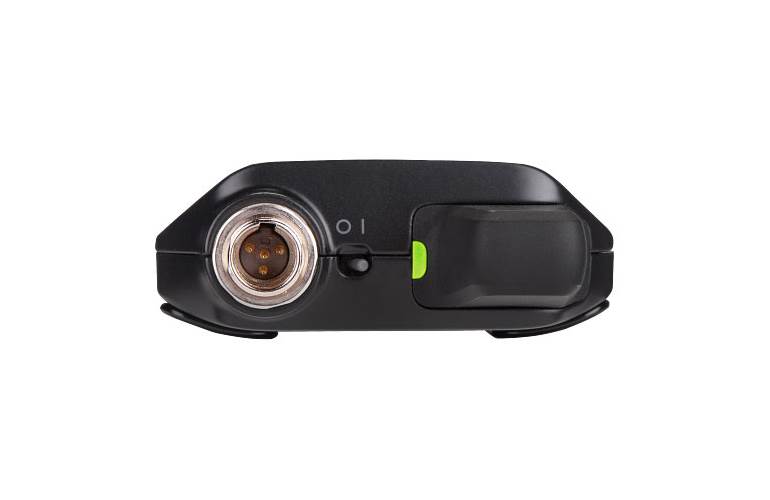

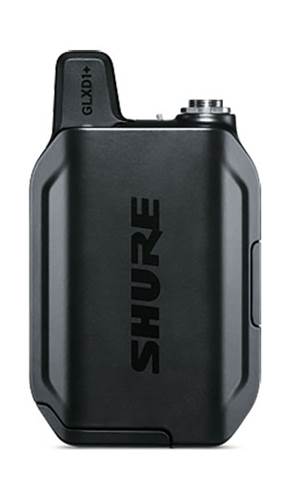

| GLXD1+ DUAL BAND BODYPACK TRANSMITTER | |
| Housing | Cast Metal, Black Powdercoat |
| Input Impedance | 900 kΩ |
| RF Output Power | 10 mW E.I.R.P. max |
| TRANSMITTER INPUT | |
| Connector | Connector 4-Pin male mini connector (TA4M) |
| Configuration | Unbalanced |
| Maximum Input Level (1 kHz at 1% THD) | +8.4 dBV (7.5 Vp-p) |
| Antenna Type | Dual Band Internal Monopole |
| Pin Assignments TA4M | 1: Ground (cable shield) |
| 2: + 5 V Bias | |
| 3: Audio | |
| 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats) | |
| Dimensions | 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), H x W x D, without antenna |
| Weight | 5.4 oz (153.1 g), without battery |
| SM31 | |
| Transducer Type | Condenser |
| Polar Pattern | Cardioid |
| Frequency Range From (Hz) | 45 |
| Frequency Range To (kHz) | 20 |
| Weight (g) / (lbs) | 60 g / 0.132 lbs |
