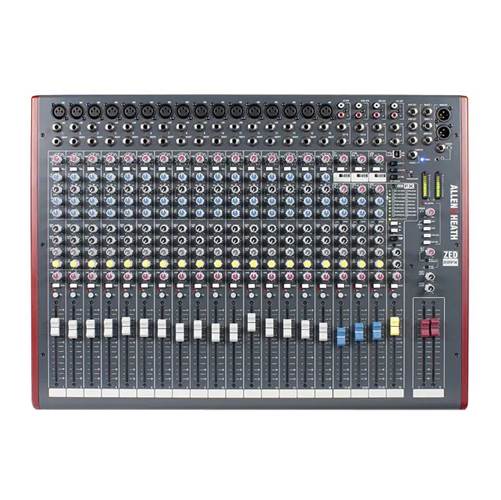

Allen & Heath ZED22FX
£749.00
In Stock
Order before 4PM for FREE Delivery Tomorrow
Includes 30-Day Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: ZED22FX/240X
Multipurpose Mixer with FX for Live Sound and Recording
- 16 mic/line channels with inserts
- 3 stereo channels
- 2 in / 2 out USB audio interface
- Onboard digital FX
- 3 aux channels + internal FX bus
- XLR main outputs with insert points
- 3-band EQ with sweepable mid
- Durable 100mm faders
Integrated FX
Add Depth With FX
The three ZED Mid FX models feature an essential selection of 16 reverb, delay and modulation effects, crafted by our renowned in-house effects team, that can be dialled in quickly to bring a performance to life.
USB Interface
Flexible Stereo Recording
All ZED Mid models feature a 2-channel interface with flexible send options including Main Mix L+R pre or post-fader, Auxes 1-2 or Auxes 3-4. The USB return comes back in on a stereo channel for playback and monitoring.
MusiQ
Powerful EQ
Our analogue engineers designed the MusiQ EQ especially for ZED mixers, carefully optimising the curves and target frequencies to deliver a simple to use, musical EQ that works equally well on stage or in the studio.
Each ZED Mid mixer features a responsive 3-band, swept mid frequency EQ design with optimised slope (or Q factor) for equalising individual instruments.
Exceptional Audio Quality
Clean, Quiet, and Plenty of Gain.
The preamps on ZED Mid mixers provide a huge 69dB of gain, enough for low output dynamic microphones and quiet acoustic sources, while keeping noise and distortion to a minimum. Gain is evenly distributed throughout the gain control ensuring precision control at all levels.
Specification
| Input | |
| Mono channel (XLR) Input | +6 to –63dBu for nominal (+17dBu in max) |
| Mono channel Line Input (Jack socket) | +10 to –26dBu (+30dBu maximum) |
| Insert point (TRS Jack socket) | 0dBu nominal +21dBu maximum |
| Stereo Input (Jack sockets) | 0dBu nominal (control = Off to +10dB) |
| Stereo input (phono sockets) | 0dBu nominal (control = Off to +10dB) |
| Output | |
| L, R & Mono Outputs (L&R XLR, Mono Jack) | 0dBu nominal. +21dBu maximum. |
| Aux Outputs (Jack sockets) | 0dBu nominal. +21dBu maximum. |
| Alt Outputs (phono sockets) | 0dBu nominal. +21dBu maximum. |
| Rec Outputs (phono sockets) | 0dBu nominal. +21dBu maximum. |
| Frequency Response | |
| Mic in to Mix L/R Out, 30dB gain | +0.5/-1dB 20Hz to 20kHz. |
| Line in to Mix L/R out 0dB gain | +0.5/-1dB 10Hz to 30kHz |
| Stereo in to Mix L/R out | +0.5/-1dB 10Hz to 30kHz |
| Headroom | |
| Analogue Headroom from nominal (0Vu) | 21dB |
| USB in & out headroom from nominal (0Vu) | 14dB |
| USB Audio CODEC (Coder/Decoder) | |
| USB Audio In/Out | USB 1.1 compliant 16bit. |
| Sample Rate | 32, 44.1, or 48kHz |
| Weight | 10.5kg (23.1 lb) |
