RRP £178.80 Save £39.80
£139.00
Available to Order
Place your order today and we will email you when we have an estimated delivery date.Includes Christmas Exchange & 3-Year Warranty
Manufacturer's ID: CMS101IV
What we say:
At A Glance:
The Yamaha MS101-4 is a unique powered desktop monitor that can be used as a standalone speaker or as part of a pair. With a combi XLR/¼" input and, EQ controls plus the ability to be wall mounted or set on a mic stand, the MS101-4 is suitable for a series of applications.
Features We Love:
MS101-4 In Use
The main advantage of the MS101-4 is its preamp section that lets you simply plug a microphone or ¼" line level connection into the speaker. Some possible uses could see the speaker as part of a mobile studio setup, as a reference speaker at a mixing desk, as part of a guitar tech's rig, a monitor for restaurant gigs or even as a vocal monitor for home practice.

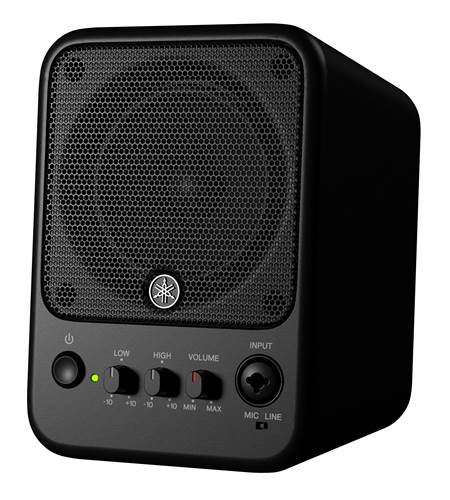

EQ Controls
The three EQ controls on the front panel let you quickly adjust the tone of the speaker to suit your needs.
Mount It
The speaker can be attached to most microphone stands for convenient placement, plus can be wall mounted or suspended from the ceiling using one of the optional brackets.
Who Is It For?
Singers, technicians and engineers.
Highlights:
- Plug and play operation
- Can be linked with other speakers
- Can be mounted on a microphone stand
Specification
| System Type | Full range Powered Speaker, Bass-reflex Type |
| Frequency Range (-10dB) | 77Hz–20kHz |
| Measured Maximum SPL (Peak) / Pink noise @1m | 115 dB SPL |
| LF | |
| Diameter | 4" (10cm) Cone |
| Voice coil | 1.0" |
| Magnet | Ferrite |
| Dimensions (WxHxD, without rubber feet) | 142 x 196 x 187 mm |
| Net Weight | 2.1 kg |

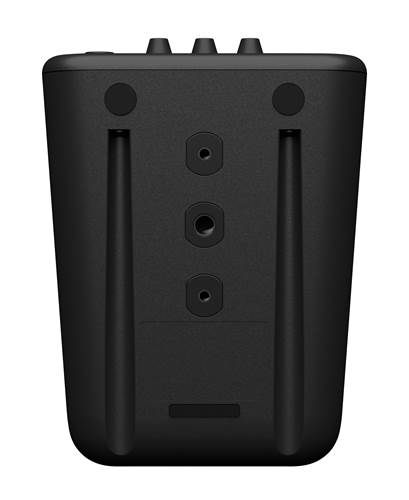

| Screw threads (bottom) | 2 x M5 depth 11mm pitch 60mm (for 2 x M5 x 6~10mm screws) |
| 1 x 3/8" depth 12mm (for 1 x 3/8" x 9~11mm screw) | |
| Amplifier Type | Class-D |
| Power Rating *1 | |
| Dynamic | 30W |
| Continuous | 20W |
| Cooling | Natural cooling (no fan) |

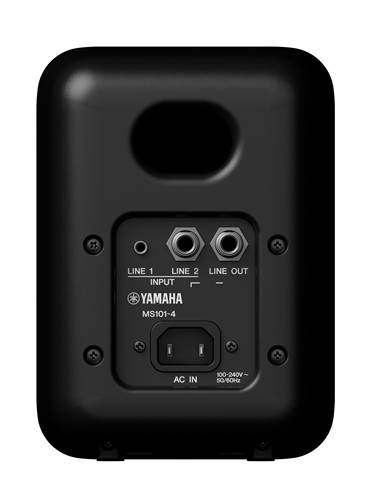

| Connectors | |
| Input | INPUT (Front): Combo, LINE INPUT 1: Stereo mini, LINE INPUT 2: Phone(TRS) |
| Output | Phone (TRS) x1 |
| Power | IEC AC inlet x1 |
| Input Impedance | INPUT (Front): LINE: 5.4 kΩ, MIC: 5.4 kΩ, LINE INPUT 1, 2: 10 kΩ |
| Input Sensitivity (VOLUME: Maximum) | INPUT (Front): LINE: -10 dBu, MIC: -40 dBu, LINE INPUT 1, 2: -10 dBu |
| Nominal Input Level (VOLUME: Center) | INPUT (Front): LINE: +5 dBu, MIC: -25 dBu, LINE INPUT 1, 2: +5 dBu |
| Maximum Input Level | INPUT (Front): LINE: +20 dBu, MIC: -10 dBu, LINE INPUT 1, 2: +20 dBu |
| Controls | VOLUME x1, LOW CONTROL x1, HIGH CONTROL x1, POWER |
| Indicators (LED) | POWER (Green) |
| Idle Power Consumption | 3 W |
| 1/8 Power Consumption | 10 W |
| Power Requirements | 100V - 240V, 50/60Hz |
