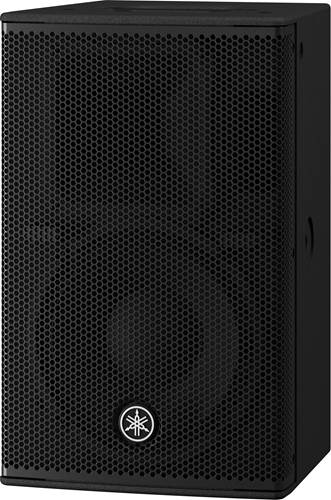

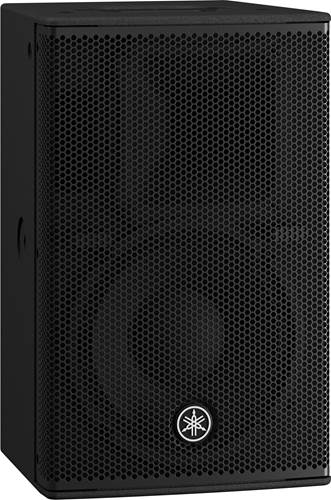

Yamaha DHR10 Powered PA Speaker
Image & Video Gallery
RRP £704.40 Save £205.40
£499.00
In Stock
2 AvailableOrder now for FREE Delivery on Monday
Includes Christmas Exchange & 3-Year Warranty
4 Year Extended Warranty
Each Yamaha DHR speaker is covered by a 4 Year Warranty upon registration with Yamaha within 6 months of purchase, giving you peace of mind over your investment.
Manufacturer's ID: CDHR10UK
What we say:
At A Glance:
The Yamaha DHR10 is a 1000w powered PA Speaker suitable for a range of situations. Its lightweight and compact size makes it ideal for use as part of a vocal PA system and also for suspending as part of a fixed installation.
Features We Love:

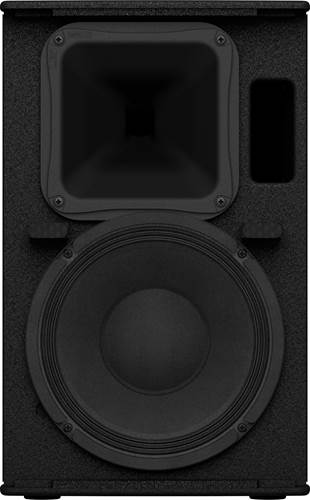

Custom-Designed Transducers
The proprietary transducers have been designed to work with the speaker's cabinet to offer a pronounced sound with minimal distortion.
2-Channel Mixer

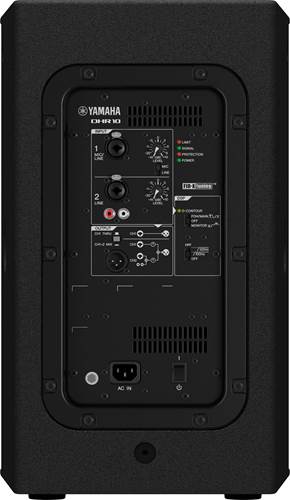

The onboard two-channel mixer features a pair of combination XLR/TRS inputs, two RCA inputs and an XLR output. Making the DHR a versatile speaker that's easy to use as part of a PA system, or simply to plug a microphone into for presentations. The mixer also makes it possible to mix a stereo line-level input, which could be from a DJ set up and send that mix to another speaker to form a full system.
D-Contour
The speaker also features Yamahas D-Contour DSP processing that enhances the speaker's frequency response to work as a front of house speaker, or as a floor monitor. The DSP also allows for high pass filtering for when you use the speaker with a sub.
Portable
With its compact size and weighing just 15 kilograms, the DHR10 is easy to transport.
Fixed Installation
When used with the optional U-Bracket, the DHR10 can be mounted on a wall or onto a rig in either an upright position or on its side.
Highlights:
- Clear sound with a controlled low end
- Built in two channel mixer
- Lightweight and portable
- Can be suspended for fixed installation
Specification
| System Type | 2-way. Bi-amped Powered S[ealer. Bass-reflex | |
| Frequency Range (-10dB) | 52 Hz - 20 kHz | |
| Crossover Type | FIR-X Tuning™ (Linear phase FIR filter) | |
| Crossover Frequency | 1.9kHz | |
| Maximum SPL*1 | 128dB SP | |
| Transducer | ||
| LF Diameter | 10" Cone | |
| LF Voice Coil | 2" | |
| LF Magnet | Ferrite | |
| HF Diaphragm | 1.4" PET | |
| HF Type | 1" Throat Compression Driver | |
| HF Magnet | Ferrite | |
| Enclosure | ||
| Material, Finish, Colour | Plywood, Durable Polyurea coating, Black | |
| Floor Monitor Angle | 57° | |
| Dimensions (W x H x D with rubber feet) | 305 x 494 x 300 mm | |
| 12" x 19.5" x 11.8" | ||
| Weight | 15 kg (33.1 lbs) | |
| Handles | Top x1 | |
| Pole Pocket | Φ35 mm | |
| Rigging Points for eyebolts | M10 x2 (Top x2, Read x1, L:30-50mm) | |
| Amplifier & DSP | ||
| Amplifier Type | Class-D | |
| Power Rating Dynamic 2 | 700W (LF:500W, HF:200) | |
| Power Rating Continuous | 325W (LF: 260W, HF: 65W) | |
| Cooling | Fan cooling, 4 speeds | |
| AD/DA | 24 bit / 48 kHz Sampling | |
| HPF/LPF | OFF, 100, 120Hz 24dB/oct HPF | |
| DSP control, preset | D-Contour (FOH/Main, Monitor, Off) | |
| Speaker Protection | Clip limiting, Integral Power Protetion, DC-fault | |
| Amplifier Protection | Thermal, Output over current | |
| Power Supply Protection | Thermal, Output over voltage, Output over current | |
| Analog Input | INPUT1: Combo x1, INPUT2: Combo x1 + RCA-pin x2 (Unbalanced) | |
| Analog Output | XLR3-32 x1 (CH! Parallel Through or CH1+CH2 Mix) | |
| AC IN | IEC AC inlet x1 | |
| Analog Input Impedance | INPUR1 (XLR, TRS Phone) : 3kΩ, INPUT2 (XLR, TRS Phone, RCA Pin) : 10kΩ | |
| Analog Input Sensitivety (LEVEL: Maximum) | INPUR1: LINE= 0dBu / MIC= 32dBu, INPUT2= 0dBu | |
| Analog Input Sensitivety (LEVEL: Center) | INPUT1 : LINE= +10dBU / MIC= 22dBu, INPUT2= +10dBu | |
| Maximum Analog Input Level | INPUT1 : LINE: +24dBu, MIC: -8dBu, INPUT2: +24dBu | |
| Controls | LEVEL x2, LINE/MIC, HPF, D-CONTOUR, THRU/MIX, POWER | |
| Power Consumption (Idle) | 18w | |
| Power Consumption (1/8 power) | 60w |
