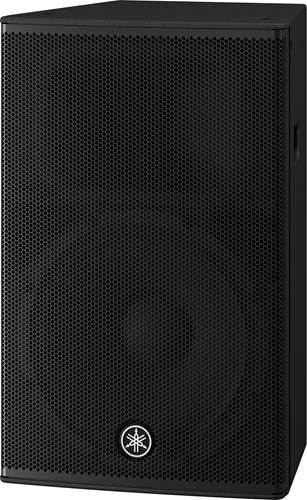

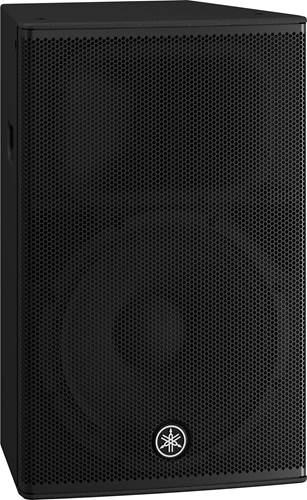

Yamaha CHR15 Passive PA Speaker
Image & Video Gallery
RRP £675.60 Save £226.60
£449.00
In Stock
2 AvailableOrder now for FREE Delivery on Thursday
Includes Christmas Exchange & 3-Year Warranty
Manufacturer's ID: CCHR15
What we say:
At A Glance:
The Yamaha CHR15 is a high quality 15" passive PA speaker designed for use in fixed installations and mobile PA systems.
Features We Love:

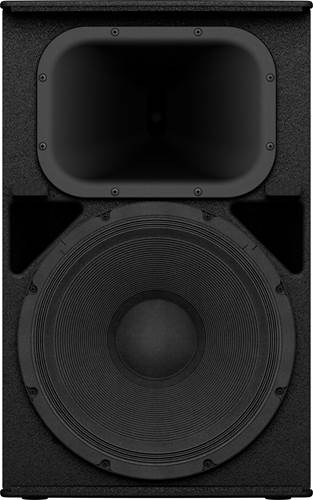

Custom-Designed Transducers
The proprietary transducers have been designed to work with the speaker's cabinet to offer a pronounced sound with minimal distortion.
Portable
With its robust built quality and weighing just 20 kilograms, the CHR15 is easy to transport and built to last.
Fixed Installation
While the CHR15 can be pole-mounted for use in a mobile PA, it can also be suspended using its three rigging points, ideal for a fixed installation in your venue.
Highlights:
- Clear sound quality with low distortion
- Lightweight and portable
- Can be suspended for fixed installation
Specification
| System Type | 2-way Speaker. Bass-reflex | |
| Frequency Range (-10dB) | 49 Hz - 20 kHz | |
| Coverage Angle | H90° x V60° | |
| Crossover Frequency | 2.0 kHz | |
| Nominal Impedance | 8Ω | |
| Rating Power (A-426 EIA) | ||
| NOISE | 250W | |
| PGM | 500W | |
| MAX | 1000W | |
| Sensitivity (1Q, 1m) *1 | 95dB SPL | |
| Maximum SPL (Calculated, 1m) *1 | 125 dB SPL | |
| Transducer | ||
| LF Diameter | 15" Cone | |
| LF Voice Coil | 2.5" | |
| LF Magnet | Ferrite | |
| HF Diaphragm | 1.4" PET | |
| HF Type | 1" Throat Compression Driver, Coaxial | |
| HF Magnet | Ferrite | |
| Enclosure | ||
| Material, Finish, Colour | Plywood, Durable Polyurea coating, Black | |
| Floor Monitor Angle | 57° | |
| Dimensions (W x H x D with rubber feet) | 432 x 692 x 405 mm | |
| 17." x 27.2" x 15.9" | ||
| Weight | 22 kg (34.4 lbs) | |
| Handles | Side x2 | |
| Pole Pocket | Φ35 mm (0° or -7°) | |
| Rigging Points for eyebolts | - | |

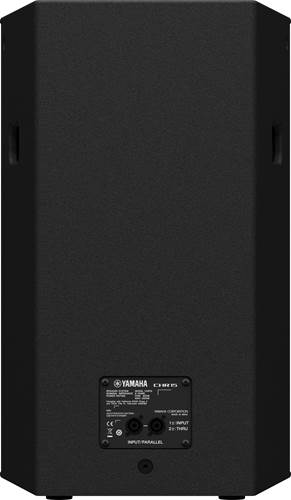

| Connectors | SpeakON NL4MP x 2 (Parallel) |
