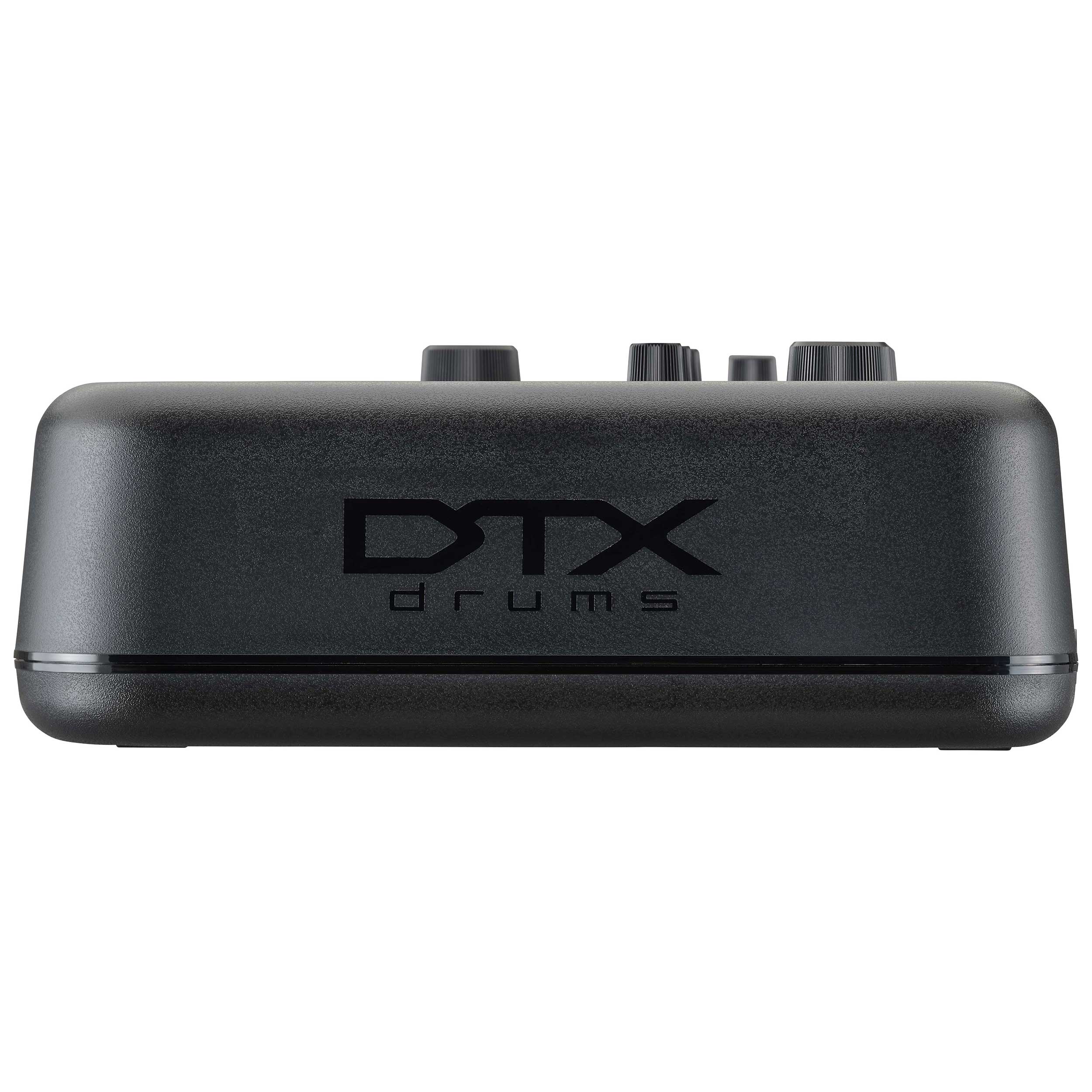

Yamaha DTX PRO Sound Module
Image Gallery
Was £659.00 Save £60.00
£599.00
Available to Order
Place your order today and we will email you when we have an estimated delivery date.Includes Christmas Exchange & 3-Year Warranty
Manufacturer's ID: JDTXPROUK
The DTX-PRO is a next-generation sound module that takes sound quality, functionality, and usability to new heights. The KIT MODIFIER feature allows you to instantly create your sound just by turning the three KIT MODIFIER knobs - AMBIENCE, COMPRESSION, and EFFECT. These alter the effects and ambience of the sounds, which were sampled in some of the most noted studios in the world. The MODIFIER knobs are a great stimulus to creativity, giving drummers the freedom to create their own signature sounds. The DTX-PRO module brings more realism, more enjoyment, more fun, and more freedom to your music than ever before.
Specification
| Dimensions | Width | 303 mm (11-15/16 in) |
| Height | 196 mm (7-11/16 in) | |
| Depth | 66 mm (2-5/8 in) | |
| Weight | 1.5 kg (3 lb 5 oz) | |
| Maximum Polyphony | 256 notes | |
| Effects | For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst. | |
| Drum kits | Preset: 40 Kits, User: 200 Kits | |
| Voices | 712 | |
| Click Sets | 30 | |
| Tempo | 30 to 300 BPM, Tap Tempo supported. | |
| Time signatures | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 | |
| Subdivisions | Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets | |
| Others | Individual click volume control, wav import, timer | |
| Types | 10 | |
| Songs | Preset: 37 songs, User: 1 song | |
| Import limit | 1,000 files | |
| Maximum loadable sample time | 760 seconds (44.1 kHz, 16 bit, mono), 380 seconds (44.1 kHz, 16 bit, stereo) | |
| sample format | WAV | |
| Recording time | Internal memory | Maximum of 90 seconds |
| USB flash drive | Maximum of 90 minutes per file | |
| Format | Record/playback: WAV (44.1 kHz, 16 bit, stereo) | |

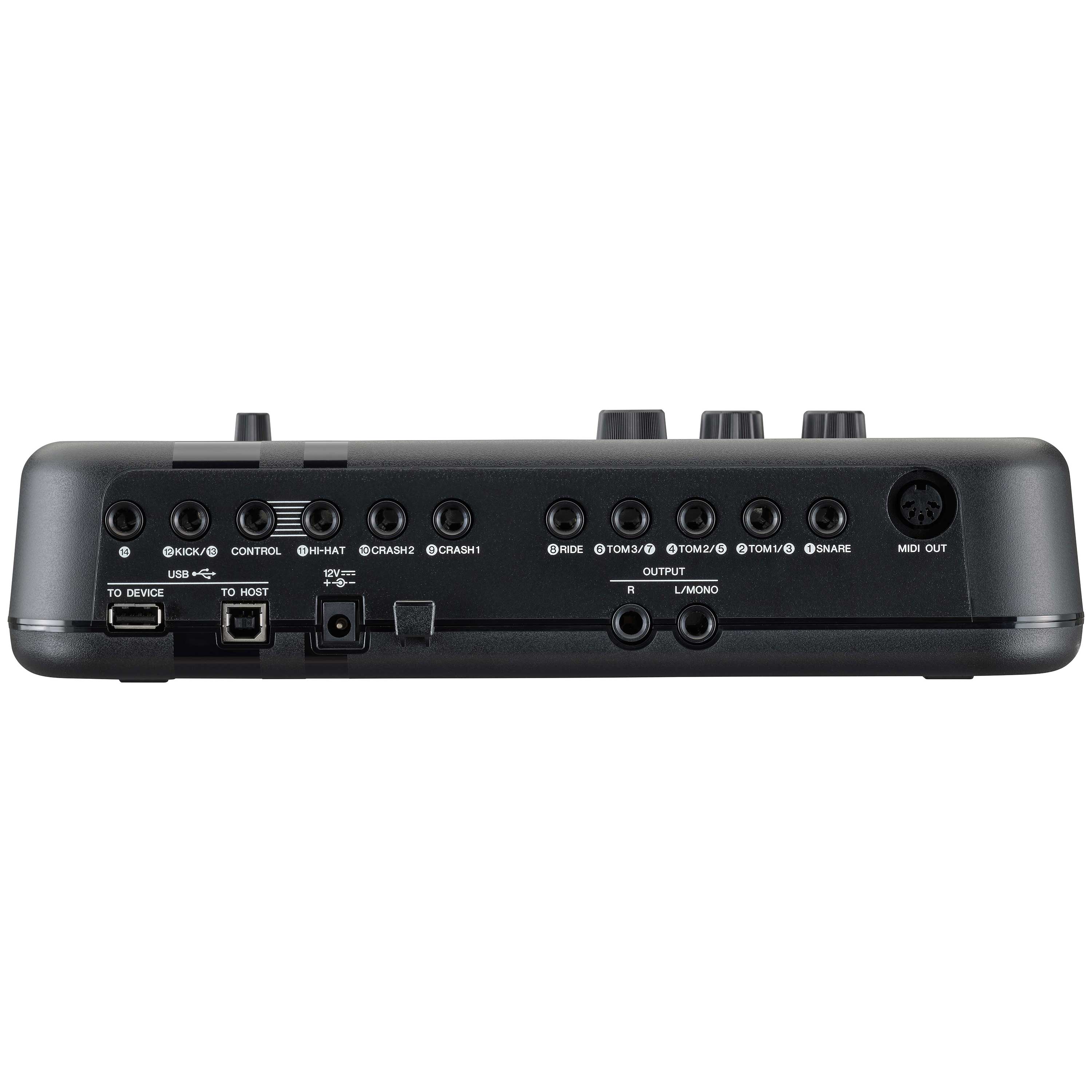

| Connectors | DC IN | DC IN (+12V) |
| Headphones | Headphones (standard stereo phone jack × 1) | |
| AUX IN | AUX IN (stereo mini jack × 1) | |
| Output | OUTPUT L/MONO, R (standard phone jack, one for each) | |
| USB | USB TO DEVICE, USB TO HOST | |
| MIDI | MIDI OUT | |
| Trigger Input | Trigger inputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is used) | |
| Display | Full Dot LCD (128×64 dot) | |
| Accessories | AC adaptor (PA-150 or an equivalent recommended by Yamaha)*2, Owner’s Manual, module holder, module holder wing bolts (× 4) Cubase AI Download Information *2 May not be included depending on your area. Check with your Yamaha dealer. | |
