Manufacturer's ID: 2600M
What we say:
At A Glance:

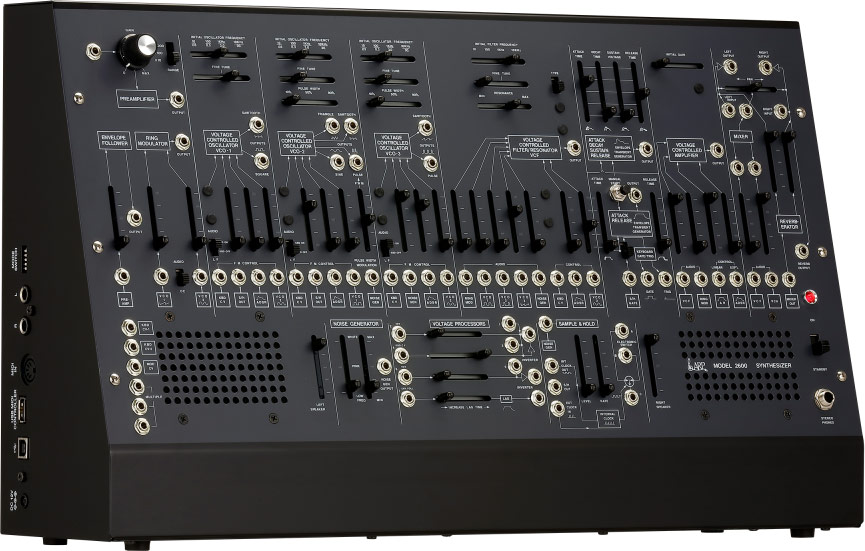

The ARP 2600 is a legendary synthesizer which can be heard on countless albums from the 70s to the present day. The ARP 2600 M is a detailed remake that features that classic sound along with updated features and a smaller footprint. This makes it a more ideal addition to the modern studio, thanks to the inclusion of USB MIDI and smoother controls!
Features We Love:
Arp 2600 Circuitry
The ARP 2600 M features much of the same circuitry as the original unit, while upgrading the resolution of the envelope, and including two filters as opposed to one. This results in the same classic sound with more room to tailor the sounds to your needs.
MIDI
One of the great new features on the ARP 2600 M is MIDI over USB. You can either connect it to a DAW and send MIDI from there, or connect a class-compliant USB MIDI keyboard directly to the module itself. No more messing around with separate power supplies and DIN cables for controllers, just connect over a single USB cable!
New Compact Design
TThe ARP 2600 M is around 60% of the size of the original unit, making it much more compact for stage or studio rigs where space is tight. It also weighs just 5.9kg, which is significantly lighter, making it much easier to carry.
Highlights:
- Detailed recreation of the classic ARP 2600
- Fantastic sounding analogue circuitry
- Modern features like USB MIDI
- Compact and portable
- Upgraded envelopes and two filters
- Robust build quality
Specification
| Operating temperature range | 0 – +40 °C (non‐condensing) |
| Maximum Polyphony | 2 voices for duo phonic; normally monophonic |
| VCO-1 (Voltage Controlled Oscilator 1) | Waveforms:Sawtooth, square Frequency range: Approx. 0.03 Hz – 30 Hz (low freq. mode)/Approx. 10 Hz - 10 kHz (audio mode) Voltage controlled response: 1V/oct. |
| VCO-2 (Voltage Controlled Oscillator 2) | Waveforms: Sawtooth, pulse (dynamic pulse), triangle, sine Frequency rangeApprox. 0.03 Hz – 30 Hz (low freq. mode)/Approx. 10 Hz - 10 kHz (audio mode) Pulse width: 10% – 90% Voltage controlled response: 1V/oct. |
| VCO-3 (Voltage Controlled Oscilator 3) | Waveforms: Sawtooth, pulse (dynamic pulse) Frequency range: Approx. 0.03 Hz - 30 Hz (low freq. mode)/Approx. 10 Hz - 10 kHz (audio mode) Pulse width: 10% – 90% Voltage controlled response: 1V/oct. |
| VCF (Voltage Controlled Filter) | Type: Low-pass (TYPE I : early 24 dB/oct., TYPE II: late 24 dB/oct.) Frequency range: Approx. 10 Hz - 10 kHz Resonance: 1/2 - self oscillate |
| VCA (Voltage Controlled Amplifier) | Control voltage: AR type (internally connected)/ADSR type (internally connected) |
| Noise generator | Noise spectrum types (white and pink) |
| RING MODULATOR | Type: Analog multiplier Input signal (Internally connected): VCO-1 sawtooth wave, VCO-2 sine wave |
| SAMPLE & HOLD | Sampled signal: Noise (internally connected) |
| AUDIO OUTPUT JACKS Front Panel (LEFT, RIGHT OUTPUT jacks | Connector: φ3.5 mm monaural phone jack Maximum output level: +9 dBu @ 10 kΩ load Output impedance1.2 kΩ |
| Side Panel | Connector: φ6.3 mm monaural phone jack Maximum output level: +4 dBu @ 600 kΩ load Output Impedance: 1.2 kΩ |
| HEADPHONES JACK | Connector φ6.3 mm stereo phone jack Maximum output level: 50 mW + 50 mW @ 33Ω load Output impedance: 20Ω |
| EXTERNAL AUDIO INPUT (PREAMPLIFIER INPUT) JACK | Connector: φ3.5 mm monaural phone jack Maximum input level: +2dBu *RANGE x10, GAIN knob Max Input impedance: 100kΩ |
| MIDI connector | In |
| USB port | Type A, Type B |
| Power supply | AC power supply terminal (KA320) |
| Dimensions | (W × D × H)520 × 129 × 311 mm / 20.5 x 5 x 12.2 inches, |
| Weight | 5.9 kg / 13 lbs. |
| Included Items | Road case, AC power cord (KA320), patch cables, Owner’s manual, ARP sticker |
