Manufacturer's ID: VL-PSU-PPX4EK

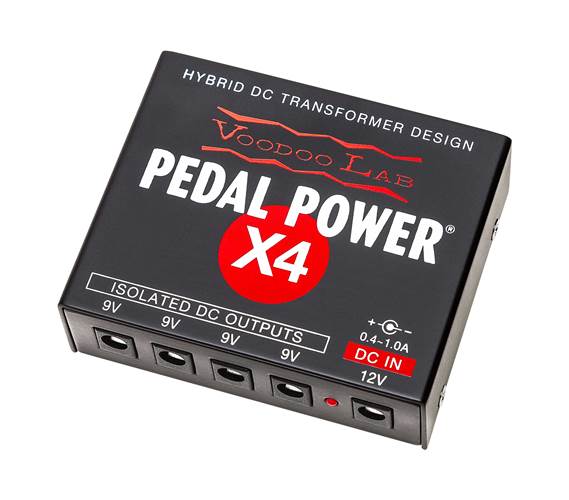

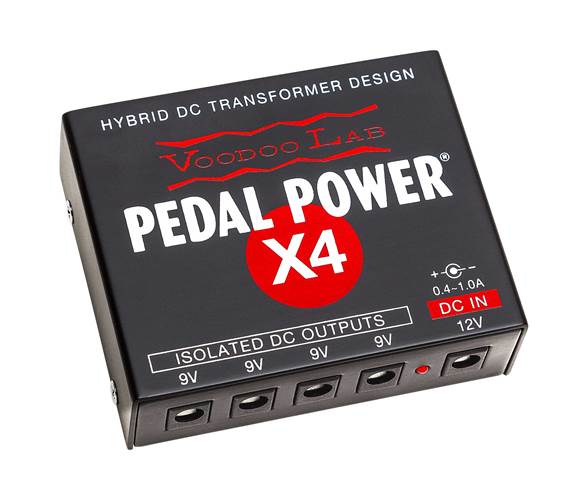

The Pedal Power® X4 Expander Kit adds four 9V isolated outputs to an existing Voodoo Lab® power supply using any available 12V high current output. Housed in an ultra-compact aluminium chassis, the virtually weightless X4 easily mounts to even the most crowded pedalboards. Pedal Power X4 delivers the pure and reliable power necessary for pedals to perform and sound their very best – all with zero added noise.

SPECIAL NOTE: The X4 Expander Kit requires a 12V DC power source to operate. Compatible power sources include Pedal Power 3 series X-LINK expansion ports or any Pedal Power 12V DC output of 400mA or more. For use as a stand-alone power supply, choose the full version Pedal Power X4.

  • Adds 4 isolated 9V DC outputs to compatible Pedal Power
  • Powers directly from Pedal Power 3 X-LINK or any 12V out of 400mA or more
  • Each output delivers up to 500mA
  • Ultra-compact, lightweight design for easy mounting to any pedalboard
  • Advanced filtering and linear regulation ensure noise-free audiophile-quality performance
  • Delivers clean, consistent power even with poor AC line conditions
  • Works with battery-operated and high current DSP effects
  • Compatible with Pedal Power 3, ISO-5, Digital, 4X4, and MONDO
  • Includes power cables and 3M Dual Lock for mounting
  • Made in the U.S.A.

Specification

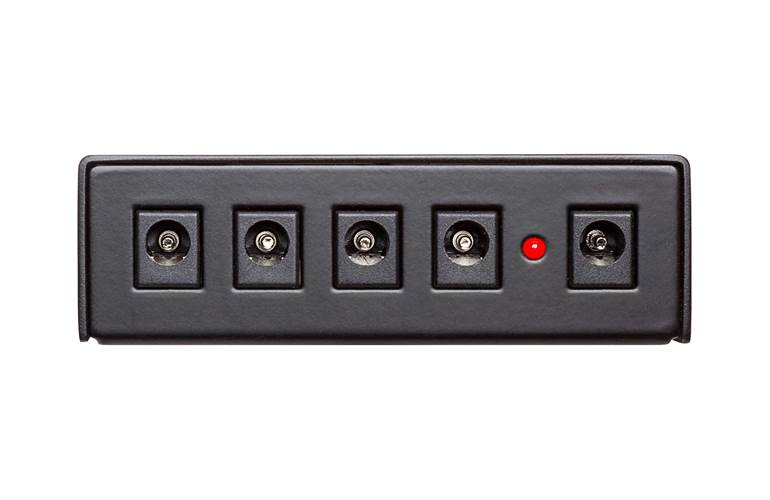

Input 2.1mm barrel jack - center-negative polarity (12V DC only)
Output 5.5 x 2.1mm barrel connectors – center negative
Short circuit protected
Special Features Hybrid DC transformer design
Powers from any 12V DC source 400-2000mA
Included Cables 2 x PPBAR-RS (18"), 2 x PPBAR-RS12 (12"), 1 X PPBAR (18”)
Physical Dimensions: 3.38" x 2.75" x 1" (86 x 70 x 25 mm)
Weight: 4 ounces (114g)
