Moog Matriarch
£1,899.00
Available to Order
Place your order today and we will email you when we have an estimated delivery date.Includes Christmas Exchange & 3-Year Warranty
Manufacturer's ID: MOD-MATR-03

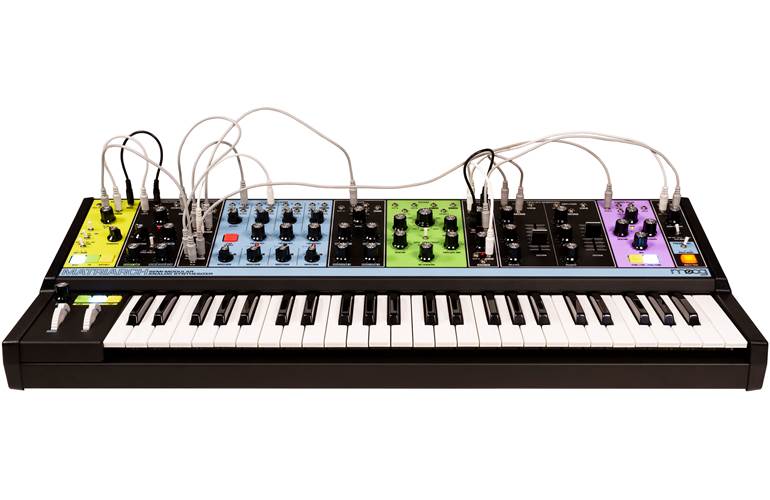

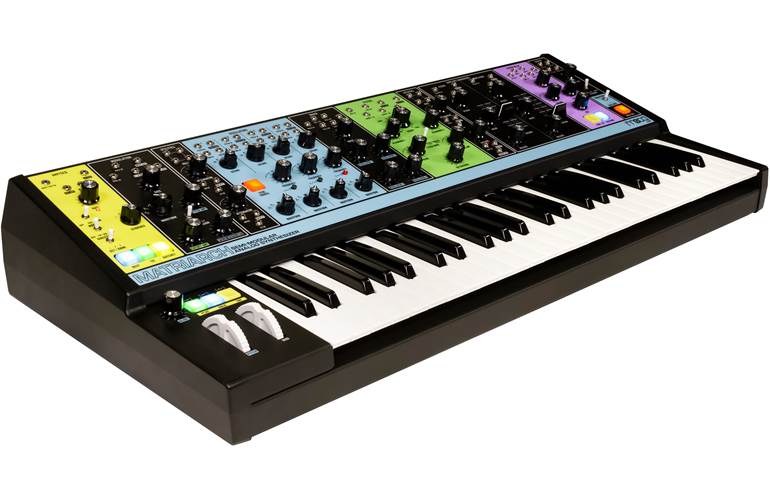

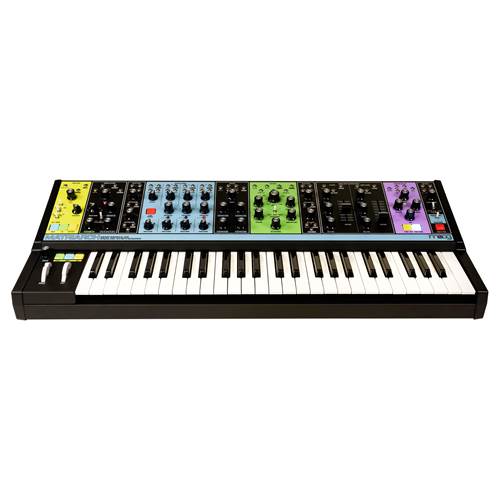

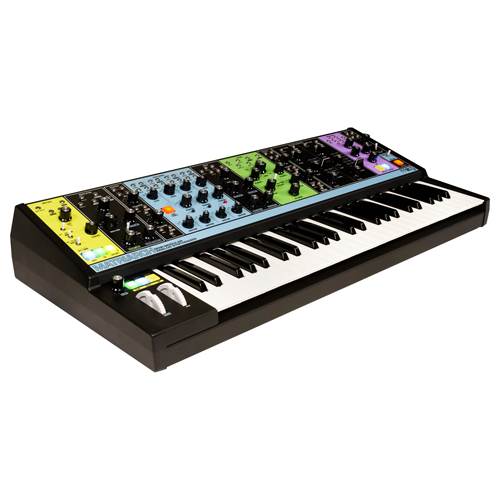

Matriarch is an analog synthesizer with an emphasis on imagination. The pinnacle of Moog’s semi-modular family of synthesizers, Matriarch’s patchable architecture and vintage Moog circuits reward open exploration with endless sonic possibilities and unparalleled analog sound.
Easily create rich harmonic shapes with up to 4 notes of paraphony that can be sequenced, saved, and shifted with Matriarch’s intuitive 256 step sequencer, or stack the analog VCOs to play on a massive 4 oscillator mono synth.
With a deep assortment of synthesis modules based on Bob Moog’s original circuit designs, Matriarch’s 100% analog signal path spans a dynamic sonic vocabulary – from overdriven monophonic bass to gently evolving paraphonic plucks that cycle through waveshapes into a wash of infinite delay trails. Coupling the power of vintage stereo ladder filters, dual Envelope Generators, stereo Analog Delays, and stereo VCAs, Matriarch delivers a multidimensional sound that empowers the sonic exploration of space and time.
Though Matriarch’s semi-modular design requires absolutely no patching, 90 modular patch points are easily accessible throughout the panel via the included 3.5mm patch cables. This powerful electronic instrument is a highly-versatile addition to any stage or studio that can effortlessly transform from a performance keyboard to a fully modular analog synthesizer at a moment’s notice.
In addition to its standalone function, Matriarch is also an ideal processor of external sound sources and a powerful keyboard front-end for expanding a DFAM, Mother-32, Grandmother, or Eurorack modular system.
Specification
Type | Semi-Modular Analog Synthesizer |
Sound Engine | 100% Analog |
Number of Keys | 49 Full-Size Keys |
Type of Keys | Velocity-sensing with Aftertouch (Velocity and Aftertouch are not hard-wired – available via MIDI, KBD VEL OUT and KB AT OUT jacks) |
Other Controllers | Pitch Bend, Mod Wheel, Variable Glide, Expression pedal in to CV out, and Sustain Pedal in |
Polyphony | Monophonic, 2-Note Paraphonic, and 4-Note Paraphonic |
Sound Sorces | 4x Analog Oscillators with Selectable Waveforms (Oscillators 2, 3, and 4 support Hard Sync), White Noise Generator, External Input jack. |
Mixer | 6 input (5 eurorack level and 1 instrument level) DC coupled discrete mixer with asymmetrical clipping behaviour |
Filters | 24dB/Octave Low Pass Filter with Resonance, 24dB/Octave switchable Low Pass/High Pass Filter with Resonance. Configurable in parallel (HP/LP), stereo (LP/LP), and series (HP/LP). |
Mod Sources | Analog Modulation Oscillator with selectable and patchable output (Sine, Saw, Ramp, Square, Stepped Triangle, Smoothed Random, Sample and Hold, Noise). Additional LFO (Tri, Square). |
Envelopes | 2x Four-Stage ADSR with End of Envelope gate outputs |
Attenuators | 3x Bipolar Voltage Controlled Attenuators with Ring Mod capabilities |
Mults | 2x4 Parallel-wired Non-buffered Patch Points |
VCAs | 2x discrete analog VCAs routed in stereo |
Effects | Stereo Analog Delay with Ping/Pong, MIDI and CV clock sync, voltage controlled Mix, and independent L/R delay times, feedback, and I/O |
Arpeggiator/Step Sequencer | 256 Steps with up to 4 notes per step; 12 Sequence locations |

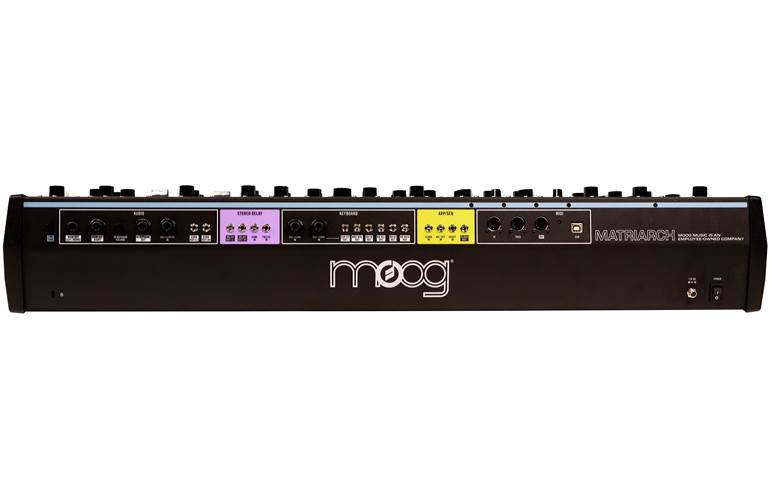

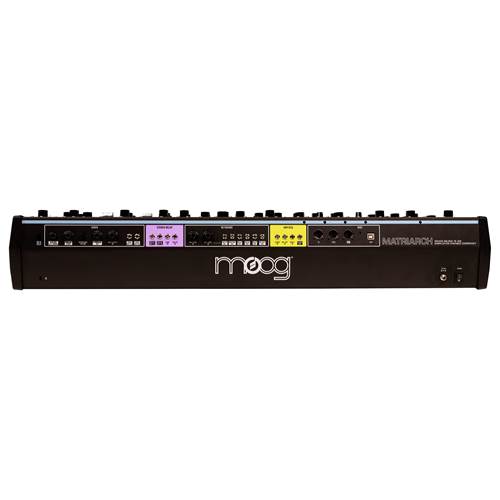

Patch Points | 90 x 3.5mm front and rear panels, 49 Inputs, 33 Outputs, 2x4 Parallel-wired Mults |
Pedal Inputs | 1/4” Sustain, 1/4” Expression |
Audio Input | 1/4” TS jack (Rear Panel) |
Audio Outputs | 2x 1/4” TS jacks for line level output (Rear Panel), 1/4” Headphone jack with dedicated level knob (rear panel), 2x 3.5mm Eurorack level outputs, 2x 3.5mm Delay outputs |
Dimensions | 32” (81.28cm) Wide x 14 1/4” (36.19cm) Deep x 5 1/2” (13.97cm) High |
Power | Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC, 50/60Hz with screw-on barrel connector |
Weight | 24lbs. / 10.89kg |
