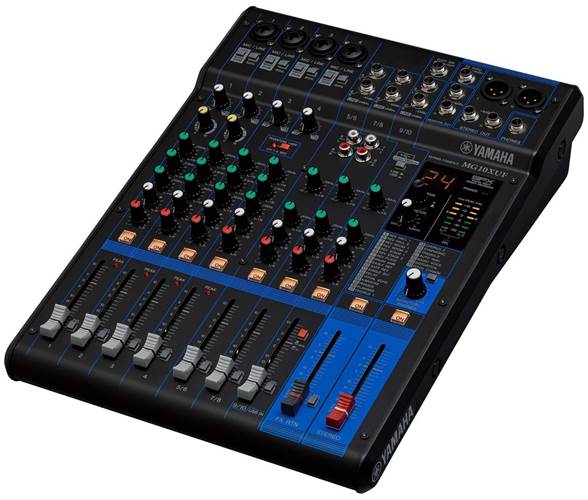

Yamaha MG10XUF Mixer

Specification

Studio Grade Preamps
The preamp is the starting point when it comes to mixers and they are the most vital components for determining the quality of your mix. The mixers within the Yamaha MG series all feature a studio-grade class-A D-PRE preamp to deliver more power at a lower impedance. This premium preamp possesses an extremely wide frequency range and delivers a sound full of fat bass tones and incredibly smooth highs with little to no distortion. This pure platform allows you to get straight into the performance without needing to spend wasted time trying to 'fix' your mix.

Integrated Digital Effects
Featuring an updated version of Yamaha's highly regarded SPX effects processor, the MG10XUF offers up to 24 editable digital effects. These built-in effects provide additional depth to an overall sound or give a boost to a live band performance. With incredible reverb and delay effects, the mixer delivers a natural sound full of clarity.

Custom Made MG01 Op-Amp
The sound quality is derived from the head amp, and one of the most important sections of the head amp is the op-amp. The Yamaha MG series mixers all have custom made MG01 amplifiers that focus on sound quality first and foremost. This integrated circuit is redesigned for optimal resolution.

Switchable Phantom Power & PAD Switch
The mixing consoles within the MG series gives users outstanding control over the improved frequency response and sound quality of condenser microphones. The input channel with PAD switch allows MIC to line level of inputs and attenuates high input signals. Therefore, the mixer can avoid issues with clipping that can be so prevalent in affecting a mix.

Innovative 1-Knob Compressor
The MG10XUF features newly upgraded 1-knob compressors with LED indicators that allow you to visually monitor when compression ''kicks in'' on each channel. These intelligent compressors add optimally set compression to a wide variety of input sources by simply adjusting a single control - eliminating the need to set up and configure complex outboard equipment.

Cubase AI Bundle
Included with the MG10XUF is a downloadable version of the Cubase AI software to offer users an outstanding music production experience straight out of the box. The advanced, DAW options allow for ultimate control over your sound and it is this quality that has garnered Cubase critical acclaim.

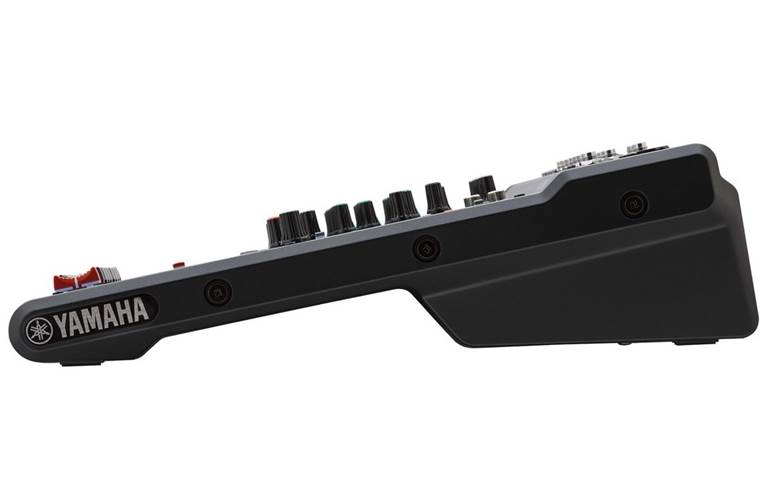

Durable Construction
Mixing consoles experience harsh environmental conditions such as excessive temperatures, humidity, unstable power supplies and the testing conditions of travel in general. This is why the MG series mixers have been built to last and withstand the trials and tribulations of a variety of testing situations. The console features an incredibly robust, powder-coated metal chassis that is designed for convection cooling as well as reducing operational noise. The circuit board and each component underneath is thoroughly protected with controlled placement of the chassis to ensure that no impact passes through the casing.

Included In The Box

• Yamaha MG10XUF Analog Mixer
• AC Adapter
• Cubase AI Download Information
• Owner's Manual
• Technical Specifications Sheet

Features

• Discrete Class-A mic preamps
• High quality sound op-amp
• Switchable phantom power & PAD switch
• 1-knob compressors
• AUX input
• EQ & high-pass filters
• Variety of input & output connectors
• LED level metering
• Built-in SPX digital effects
• Metal chassis
• Includes Cubase AI downloadable software

Technical Specifications

• Input Channels
• Mono: 4 x Mic/Line
• Stereo: 3 x Line
• Output Channels
• Stereo Out: 2
• Monitor Out: 1
• Headphone Output: 1
• AUX Send: 1
• Bus:
• 1 x Stereo
• 1 x Aux (FX)
• On-Board Effects: 24 x SPX Algorithms Effects
• Phantom Power: +48V
• USB Interface: USB 2.0, 24-Bit/192kHz
• PAD: 26dB (Mono)
• HPF: 80Hz, 12dB/oct (Mono)
• Compressor
• Threshold: +22dBu to -8dBu
• Ratio: 1:1 to 4:1
• Output Level: 0dB to 7dB
• Attack Time: Approx. 25msec
• Release Time: Approx. 300msec
• EQ:
• High: 10kHz Shelving (+15dB/-15dB Gain)
• Mid: 2.5kHz Peaking (+15dB/-15dB Gain)
• Low: 100Hz Shelving (+15dB/-15dB Gain)
• Peak LED: LED Turns On When Post EQ Signal Reaches 3dB Below Clipping
• Level Metre: 2 x 7-Segment LED Metre (Peak, +10dB, +6dB, 0dB, -6dB, -10dB, -20dB)
• Crosstalk: -83 dB
• Power Requirements: PA-10 (AC 38 VCT, 0.62A, Cable Length = 3.6m)
• Power Consumption: 22.9W
• Dimensions
• Height: 71mm
• Width: 244mm
• Depth: 294mm
• Weight: 2.1kg
