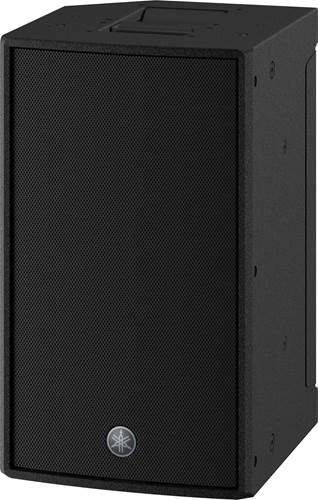

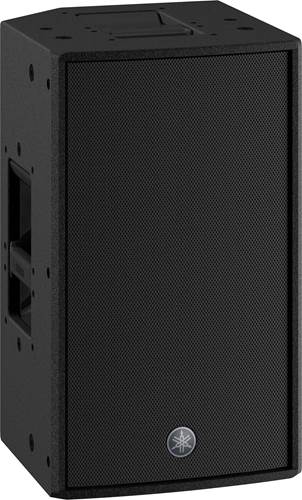

Yamaha DZR10 (Single) 10 Inch Active Speaker
Image & Video Gallery
RRP £1,569.60 Save £570.60
£999.00
In Stock
2 AvailableOrder now for FREE Delivery on Monday
Includes Christmas Exchange & 3-Year Warranty
Frequently Bought Together
7 Year Extended Warranty
Each Yamaha DZR speaker is covered by a 7 Year Warranty upon registration with Yamaha within 6 months of purchase. Giving you peace of mind over your investment.
Manufacturer's ID: CDZR10UK
The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
Specification
High power 2000W Class-D amplification
The all new, highly efficient Class-D amplification module produces best-in-class 2000W of power and an impressive 143dB SPL. All the amplifiers were selected and optimized to match the full-range DZR’s high, mid (only for DZR315), and low frequency transducers, while separate, customized amps were developed for the DXS XLF subwoofers as well.
HF transducer
The HF transducers are comprised of a 2˝ voice coil and 1˝ throat compression driver, a titanium diaphragm and Neodymium magnet housed in a durable heat –resistant aluminum cast frame.
MF transducer for the 3-way
The MF transducer for the 3-way DZR315 models feature an 8˝ Cone, 1.5˝ voice coil providing better efficiency and super-low distortion for the low-mid frequencies, and contributing to the extraordinarily high 143dB maximum SPL and the clarity of the sound.
LF transducer
Our newly developed proprietary LF transducers use large 3˝ voice coils, cast aluminum frames, and a very strong, lightweight neodymium magnet to handle high power and powerful low frequency response despite the lightweight construction. The response is tightly controlled, particularly in the mid-bass and vocal range, assuring overall response is powerful and distortion-free even at the highest outputs.
Utilities for safe and secure operation
DZR Series make it fast and easy to configure panel settings and transfer data via USB, and also feature a panel locking function to keep your settings safe. Users can even export information such as internal device and log data to USB for rapid troubleshooting should difficulties arise.
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex |
| Frequency range (-10dB) | 44Hz - 20kHz |
| Crossover | 1.8kHz (FIR-X) |
| Maximum output level (1m; on axis) | 137dB SPL *1 |
| I/O Connectors | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load |
| Dimensions | |
| Width | 315 mm (12.4") |
| Height | 537 mm (21.1") (with rubber feet) |
| Depth | 345 mm (13.6") |
| Net weight | 17.9kg (39.5lbs) |
| Pole socket | Φ35 mm x2 (0° or -7°) |
