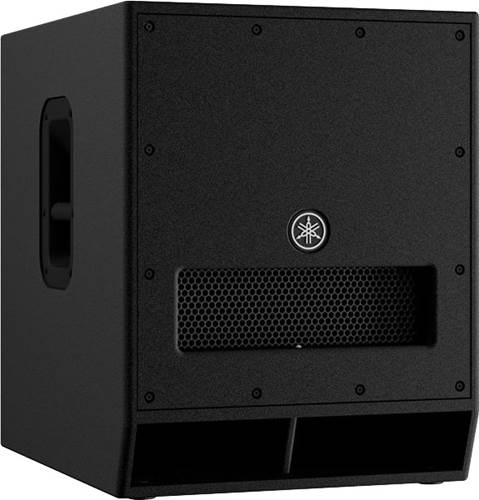

Yamaha DXS15 MKII Subwoofer

The new DXS15mkII capable of producing tight, thunderous low frequencies as low as 40Hz and a maximum SPL of 135dB, this updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high power output is focused, powerful, and distortion-free.

Feel the Power

DXS Series were made for audio engineers and bass fanatics who demand consistent high-quality sound for their live performances or DJ events— even when it's cranked to the maximum SPL.

High-Efficiency 1020W Class-D Amplifiers

The DXS’s high-performance Class-D amplifier is capable of producing up to 1020W of power, and a maximum SPL of 136dB, delivered with exceptional clarity and accuracy. Both the DXS15mkII and DXS12mkII can produce 3dB more SPL than previous models.

Custom Designed Transducer

The high-output woofer of DXS18 features a 4" voice coil magnet and delivers powerful, well-defined, low-frequency bass with minimal distortion. The DXS12mkII and DXS15mkII both feature 2.5" voice coil magnets.

Band-Pass Type Enclosure

All DXS Series enclosures incorporate a band-pass design to reduce unwanted vibrations and noise that could otherwise sabotage your sound. We've also designed a very durable plywood enclosure which, when combined with the band-pass configuration, tested better than the traditional bass-reflex design and reduced distortion considerably, making it possible to achieve a higher SPL.

Rugged coating for superior protection

Enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.

Compact and portable design enclosure

Just as impressive as the high output at their disposal is the compact portability and lightweight construction that houses the DXS Series' awesome power. The DXSmkII models in particular have shed 2kg and 3kg compared to their 15” and 12” predecessors respectively, making it easier than ever to load up, set up, or tear down your PA.

Cardioid Mode

Because low frequencies can be omnidirectional, controlling the output directivity of a system’s bottom end can be a challenge, with the sound pressure hitting the stage often being equal to that of its intended FOH audience. For setups consisting of two or more DXS subwoofers, selecting the newly developed Cardioid Mode effectively decreases stage-side sound pressure while increasing the bottom-end output directed towards the audience, resulting in a cleaner stage monitoring environment and a more pronounced bass experience for the audience.

D-XSUB Bass Processing

Powerful D-XSUB processing gives you total control of your low frequency. NORMAL mode gives you the ideally balanced low-frequency response, while BOOST mode provides a tighter and more focused bass. XTENDED LF mode drops the low-end frequencies down even further for thunderous bottom end that delivers a low frequency extension unheard of from smaller cabinets. Take your full-range system to the next level with the power and versatility of DXS Series active subwoofers.

Selectable X-OVER(80/100/120Hz)

Crossover switching allows users to seamlessly match DXS subwoofers with any of Yamaha’s full-range powered speakers by selecting the cutoff frequency best suited to the models in their speaker array (up to 120Hz).
