What we say:
At A Glance:

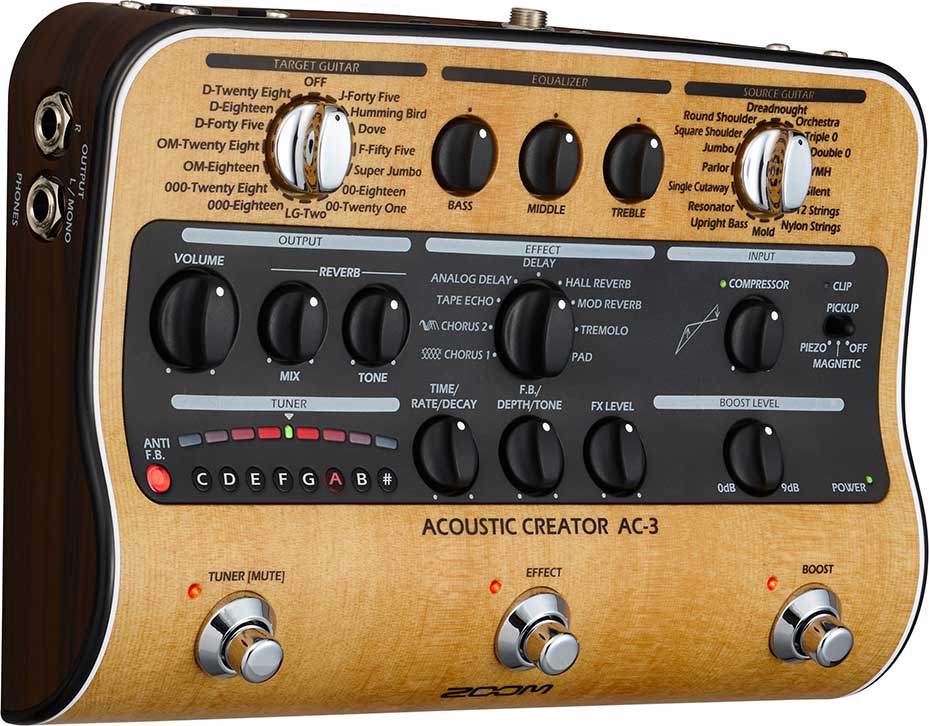

The AC-3 Acoustic Creator by Zoom is a professional stereo DI box that has been designed to enhance the tone of acoustic guitars. With built-in effects, EQ, compression and a tuner, there's no better way to get the sound you want to a PA.
Features We Love:
Tone Enhancement
The Source and Target Guitar Knobs let you select your style of guitar and it automatically optimises the settings to compliment the characteristics of your guitar.
Effects
AC-3 has a selection of effects to enhance the sound of your guitar, including reverb, chorus and delay.
Compression
The built-in compressor ensures your guitar has a consistent tone and has dedicated settings optimised for Piezo and Magnetic pickups.
Equalizer
The EQ lets you fine-tune the tone of your guitar and filter out the risk of feedback.
Tuner
The built-in chromatic tuner conveniently mutes your guitar when it's activated.
Highlights:
- Optimise the tone of your guitar
- Hi quality DI box
- Built in tuner
Specification
| General | |
| SOURCE GUITARS | 16 Types |
| TARGET GUITARS | 15 Type |
| EFFECT TYPES | 9 Types |
| SAMPLING FREQUENCY | 44.1 kHz |
| A/D CONVERSION | 24-bit with 128x oversampling |
| D/A CONVERSION | 24-bit with 128x oversampling |
| SIGNAL PROCESSING | 32-bit |
| FREQUENCY CHARACTERISTICS | 20 Hz – 20 kHz (+1 dB/-3 dB) (10 kΩ load) |
| Inputs | Standard mono phone jack Rated input level: -20 dBu Input impedance: 10 MΩ |
| Outputs | |
| L/MONO/PHONES | Standard stereo phone jack (combined line/headphones) |
| Maximum output level: Line +7 dBu (10 kΩ or more output impedance) Headphones 8 mW + 8 mW (32 Ω load) | |
| R | Standard mono phone jack |
| Maximum output level: Line +7 dBu (10 kΩ or more output impedance) | |

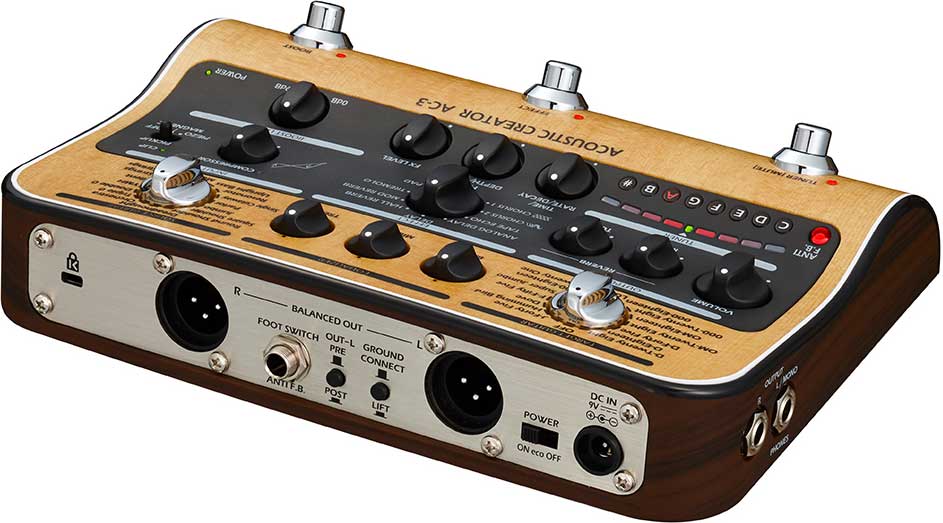

| BALANCED OUT-L | XLR jack Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD) PRE/POST (switchable) GND LIFT (switchable) |
| BALANCED OUT-R: | XLR jack Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD) GND LIFT (switchable) |
| Additional Specifications | |
| EQUIVALENT INPUT NOISE | 120 dBu |
| NOISE FLOOR (RESIDUAL NOISE) | -100 dBu |
| CONTROL INPUT | FS01 Input |
| POWER | AC adapter: 9 V DC 500 mA center negative (ZOOM AD-16) Batteries: 2 AA (about 3 hrs continuous operation time using alkaline batteries) |
| USB | USB MIDI USB Micro-B |
| DIMENSIONS | 6.22 in (D) X 4.21 in (W) X 2.04 in (H) |
| WEIGHT | 2.5 lbs (Not including batteries) |
| OPTIONS | FS01 footswitch |
