Manufacturer's ID: SH-01A
What we say:
At A Glance:

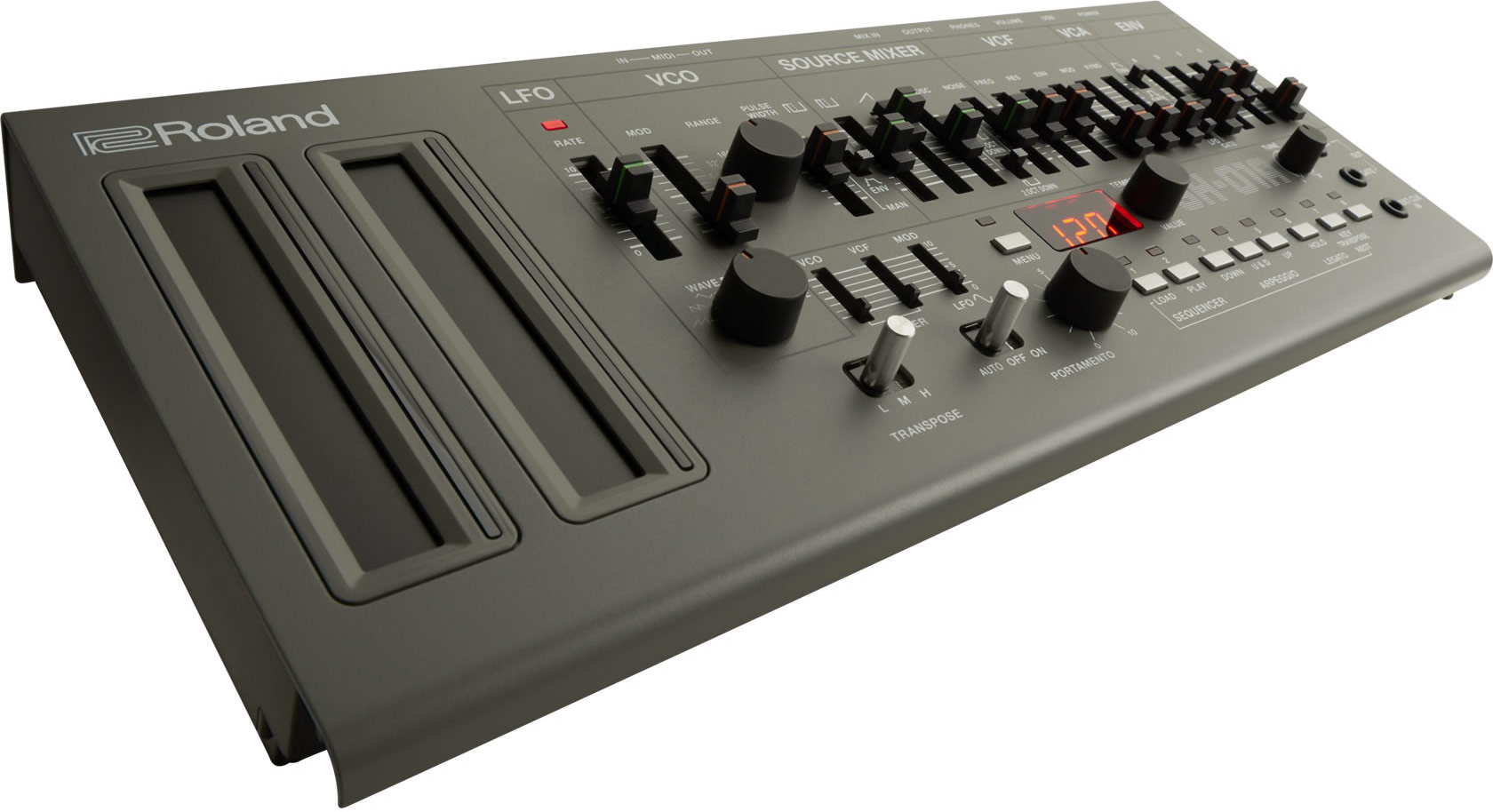

The SH-01A from Roland is a modern recreation of the legendary SH-101 synthesizer. While being much smaller than the original, the SH-01A faithfully recreates the sound of the SH-101 while including extras like 4-Voice Polyphony. Polyphonic SH-101? We’ll take it!
Features We Love:
Legendary SH-101 Sounds
The SH-101 is a vintage synthesizer released in 1982. The thick monophonic tones of the synth can be heard on hundreds of albums from the last 4 decades. Roland have managed to recreate this perfectly, thanks to their ACB Technology.
Ultra Compact
The SH-01A is very compact, meaning you can take those amazing sounds anywhere with ease. It can run on AA batteries, and has a built in speaker so you can play it wherever you want. With it also being USB bus powered, it is really easy to fit into your studio set up too.
Connectivity
You’ll find USB MIDI and Audio, 5-Pin MIDI IN/out, a headphone output and a stereo 3.5mm output on the SH-01A. There are so many options here that can work seamlessly with either a DAW setup, a hardware setup or standalone.
Highlights:
- Legendary SH-101 Sounds
- Ultra compact and portable
- Battery or USB Powered
- Built-in Speaker
What's Included:
- SH-01A Sound Module
- Owner's Manual
- Leaflet "USING THE UNIT SAFELY"
- Alkaline battery (AA, LR6) x 4
Specification
| Sound Generator Section | Maximum Polyphony: 4 voices |
| Assign Mode: MONO/UNISON/POLY/CHORD | |
| User Memory | Sound Patch: 64 |
| Sequencer Pattern: 64 | |
| Controllers | |
| Ribbon controllers C1, C2 | |
| VOLUME knob | |
| LFO section: | RATE indicator and slider |
| WAVE FORM select knob | |
| VCO section: | MOD depth slider |
| RANGE select knob | |
| PULSE WIDTH slider | |
| LFO/MAN/ENV select switch | |
| SOURCE MIXER section: | PULSE level slider |
| SAW level slider | |
| SUB OSC level slider | |
| SUB OSC select slider | |
| NOISE level slider | |
| VCF section: | FREQ: cutoff frequency slider |
| RES: resonance slider | |
| ENV: envelope depth slider | |
| MOD: modulation depth slider | |
| KYBD: key follow slider | |
| VCA section: | ENV/GATE select switch |
| ENV section: | GATE+TRIG/GATE/LFO select switch |
| A: attack time slider | |
| D: decay time slider | |
| S: sustain level slider | |
| R: release time slider | |
| Controller section: | TRANSPOSE switch (L/M/H) |
| VCO BENDER sens slider | |
| VCF BENDER sens slider | |
| LFO MOD slider | |
| PORTAMENTO select switch (AUTO/OFF/ON) | |
| PORTAMENTO time knob | |
| MENU switch and indicator | |
| SEQUENCER/ARPEGGIO section: | 1/LOAD switch and indicator |
| 2/PLAY switch and indicator | |
| 3/DOWN switch and indicator | |
| 4/U&D switch and indicator | |
| 5/UP switch and indicator | |
| 6/HOLD switch and indicator | |
| 7/KEY TRANSPOSE switch and indicator | |
| 8 switch and indicator | |
| Power switch | |
| Step Sequencer | 100 steps |
| 4 notes (Polyphonic) | |
| Arpeggio | DOWN/U&D/UP |
| 1 OCT/2 OCT | |
| Display | 7 segments, 4 characters (LED) |
| Connectors | CV OUT jack: mono miniature phone type |
| GATE OUT jack: mono miniature phone type | |
| EXT CLK IN jack: mono miniature phone type | |
| PHONES jack: stereo miniature phone type | |
| OUTPUT jack: stereo miniature phone type | |
| MIX IN jack: stereo miniature phone type | |
| MIDI (IN, OUT) connectors | |
| USB port: Micro-B type (Audio, MIDI) | |
| Power Supply | Rechargeable Ni-MH battery (AA, HR6) x 4 |
| Alkaline battery (AA, LR6) x 4 | |
| USB bus power | |
| Current Draw | 500 mA (USB bus power) |
| Expected battery life under continuous use | Rechargeable Ni-MH battery: Approx. 6 hours |
| * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. | |
| Accessories | Owner's Manual |
| Leaflet "USING THE UNIT SAFELY" | |
| Alkaline battery (AA, LR6) x 4 | |
| Width | 300 mm / 11-13/16 inches |
| Depth | 128 mm / 5-1/16 inches |
| Height | 46 mm / 1-13/16 inches |
| Weight (including batteries) | 965 g / 2 lbs 3 oz |
Firmware Update Ver.1.07 introduces the following features
- USB and MIDI have been added as MIDI clock sources.
- A function enabling switching soft thru on and off has been added.
